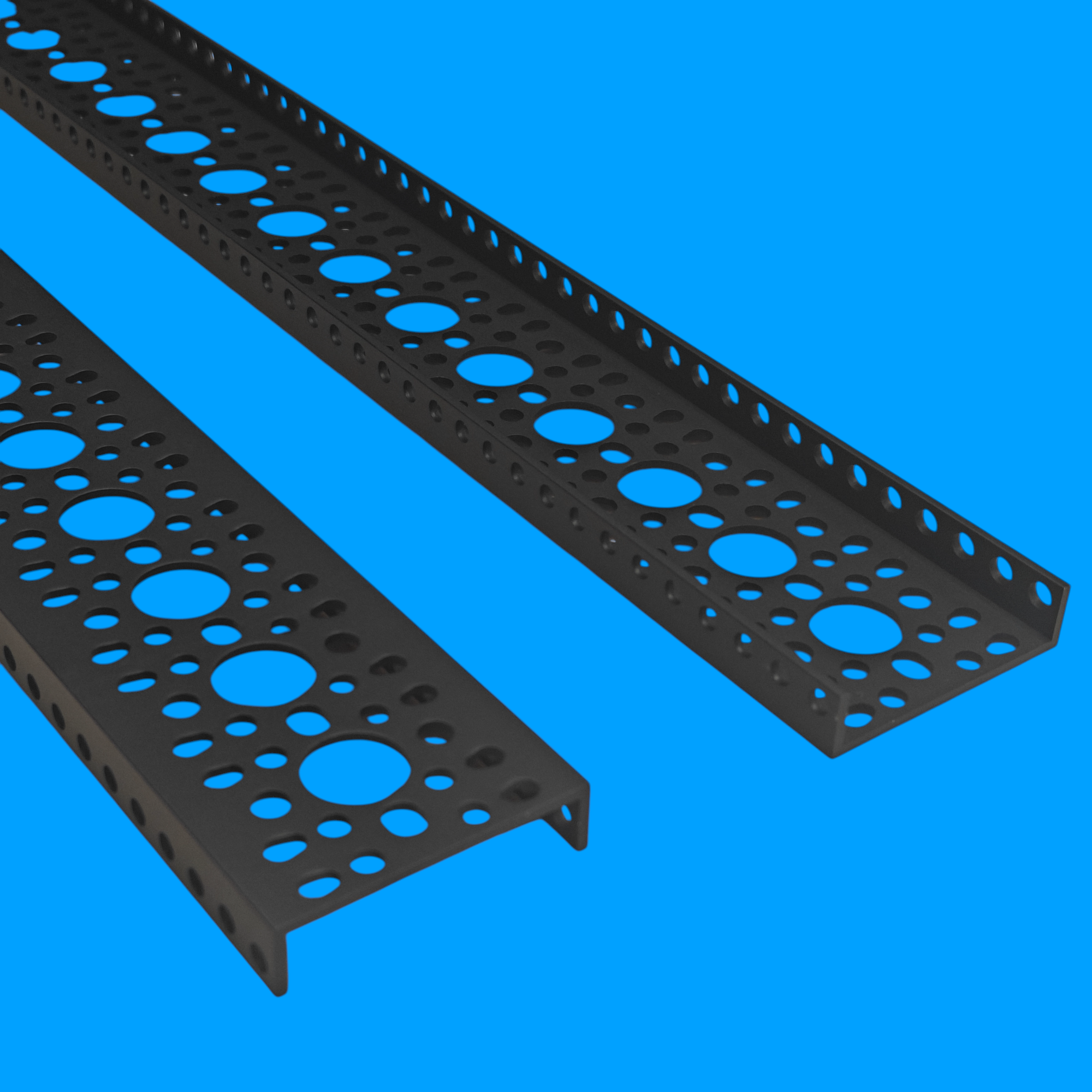

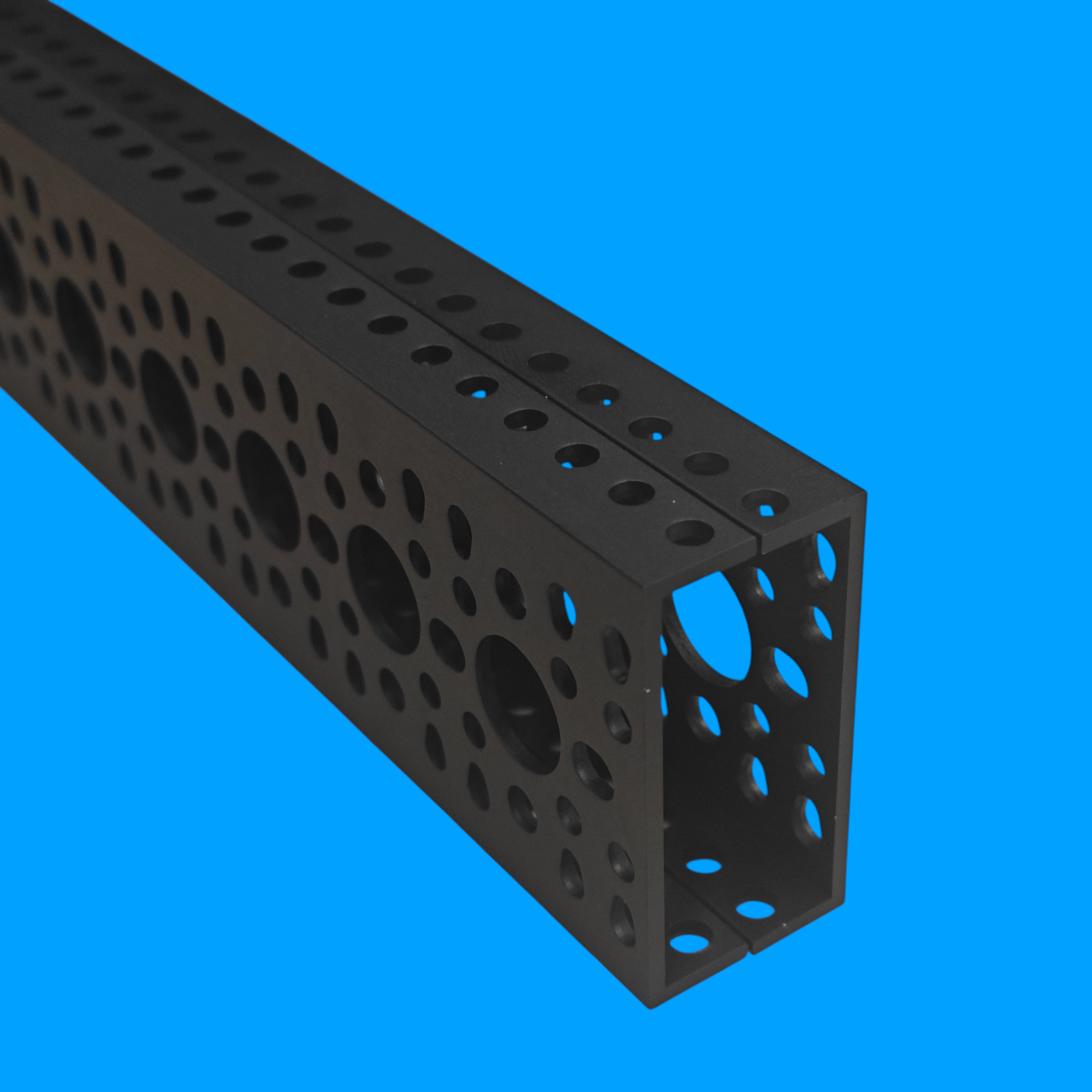

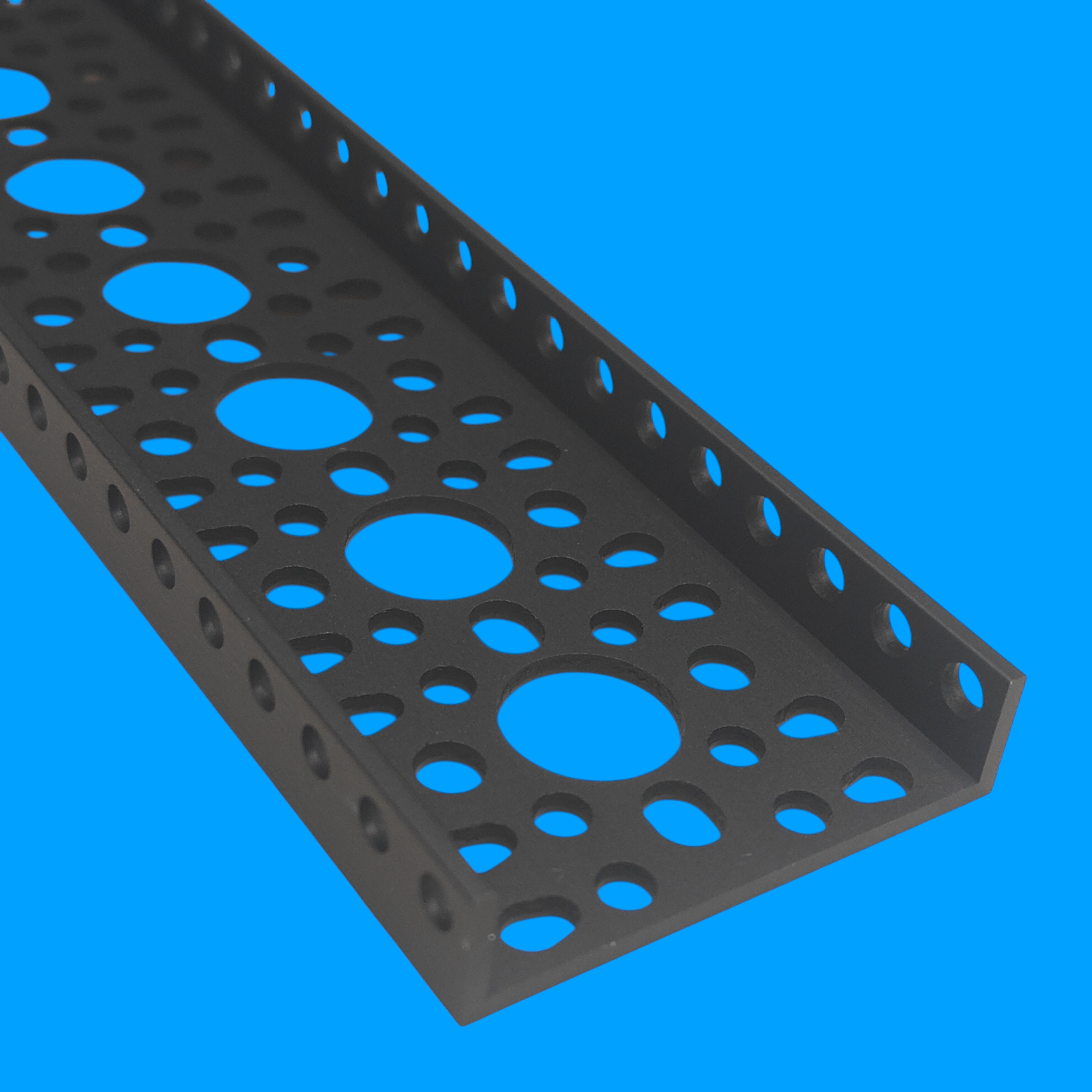

SWYFT Channel

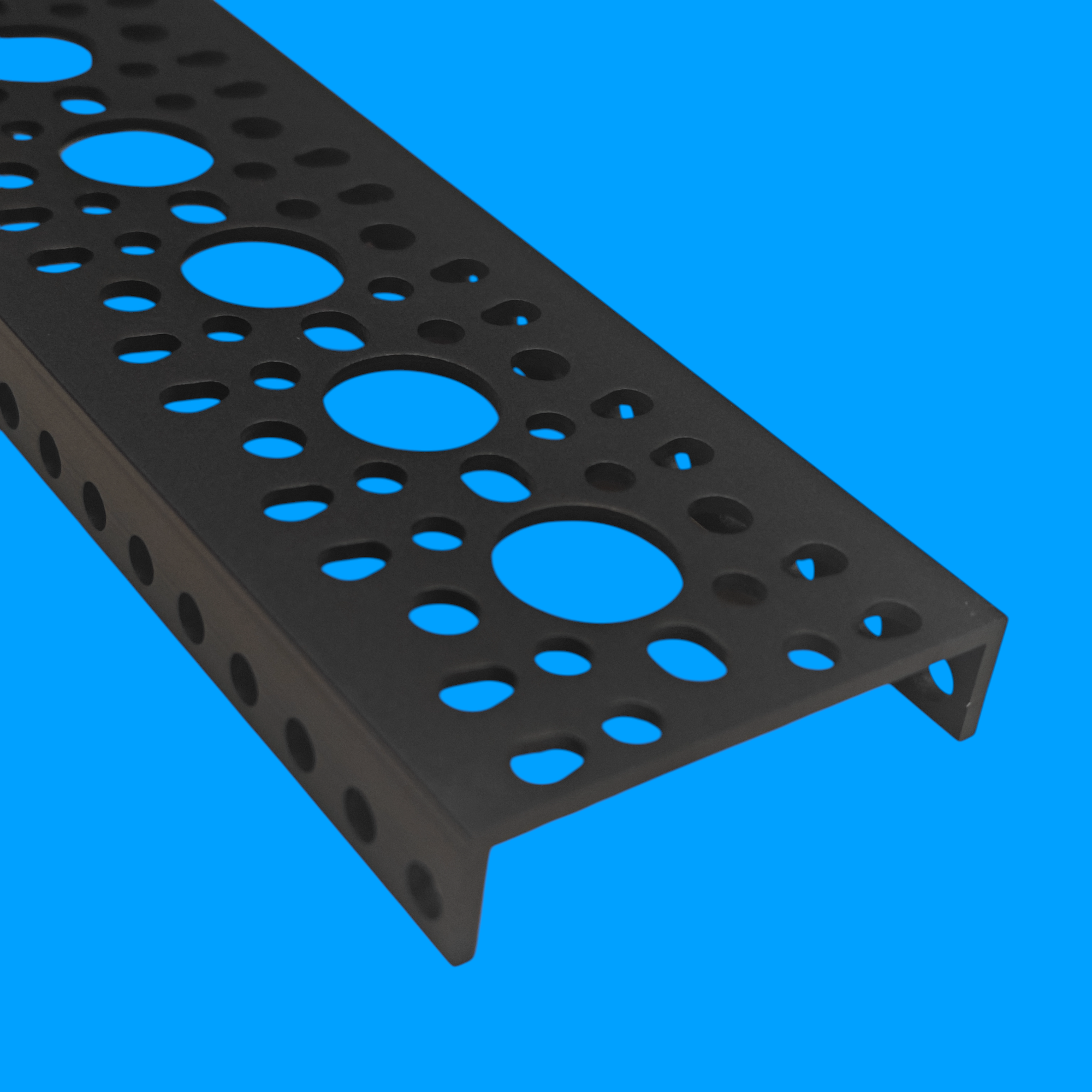

Build robust and modular FTC robot structures with SWYFT Channel, an extruded aluminum extrusion designed for drivetrains like the SWYFT Drive V2 and other frameworks in competitive robotics. Designed by SWYFT Robotics, this channel is extruded from Aluminum 6061, precisely punched for mounting holes, and finished with black anodizing for durability, corrosion resistance, and a professional look.

Key Features

• Extruded and Punched Construction: Made from high-quality Aluminum 6061, extruded for consistent shape and punched for accurate hole placement, ensuring strength and precision.
• Black Anodized Finish: Provides enhanced durability, scratch resistance, and a sleek aesthetic suitable for competition environments.
• Multi-System Compatibility: Features 3mm diameter holes for easy mounting to REV FTC Structure, and 4mm diameter holes on an 8mm grid pattern for seamless integration with goBILDA FTC Structure.
• FRC Mounting Options: Includes 10-32 holes spaced at 1" intervals, allowing secure attachment to common FRC structures like SWYFT Tube.
• Bearing Integration: Bearing holes designed to fit 14mm OD bearings, perfect for driving 8mm ID shafts in motion systems.
• Dimensions: 48mm channel width and 2mm thickness for a lightweight yet rigid profile.

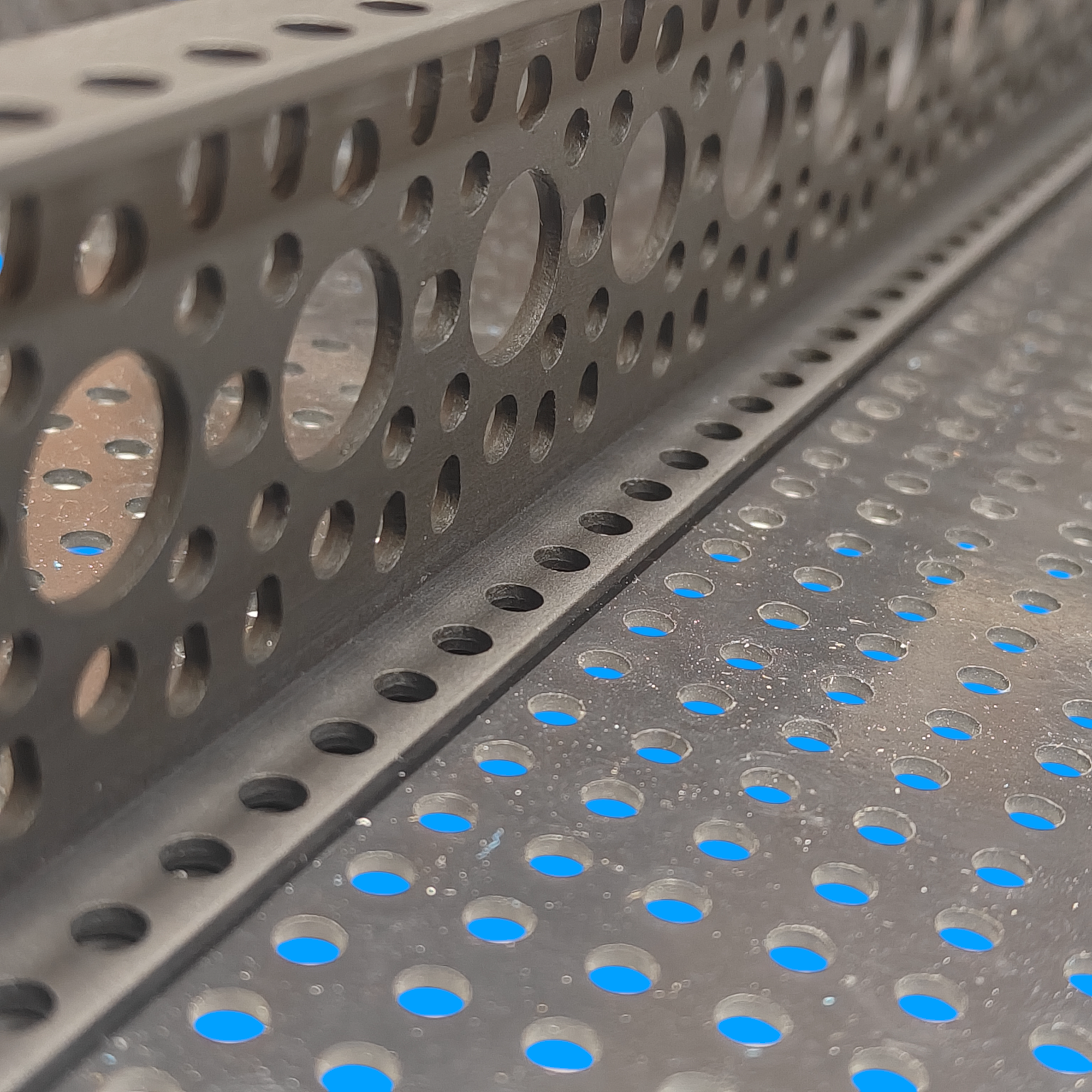

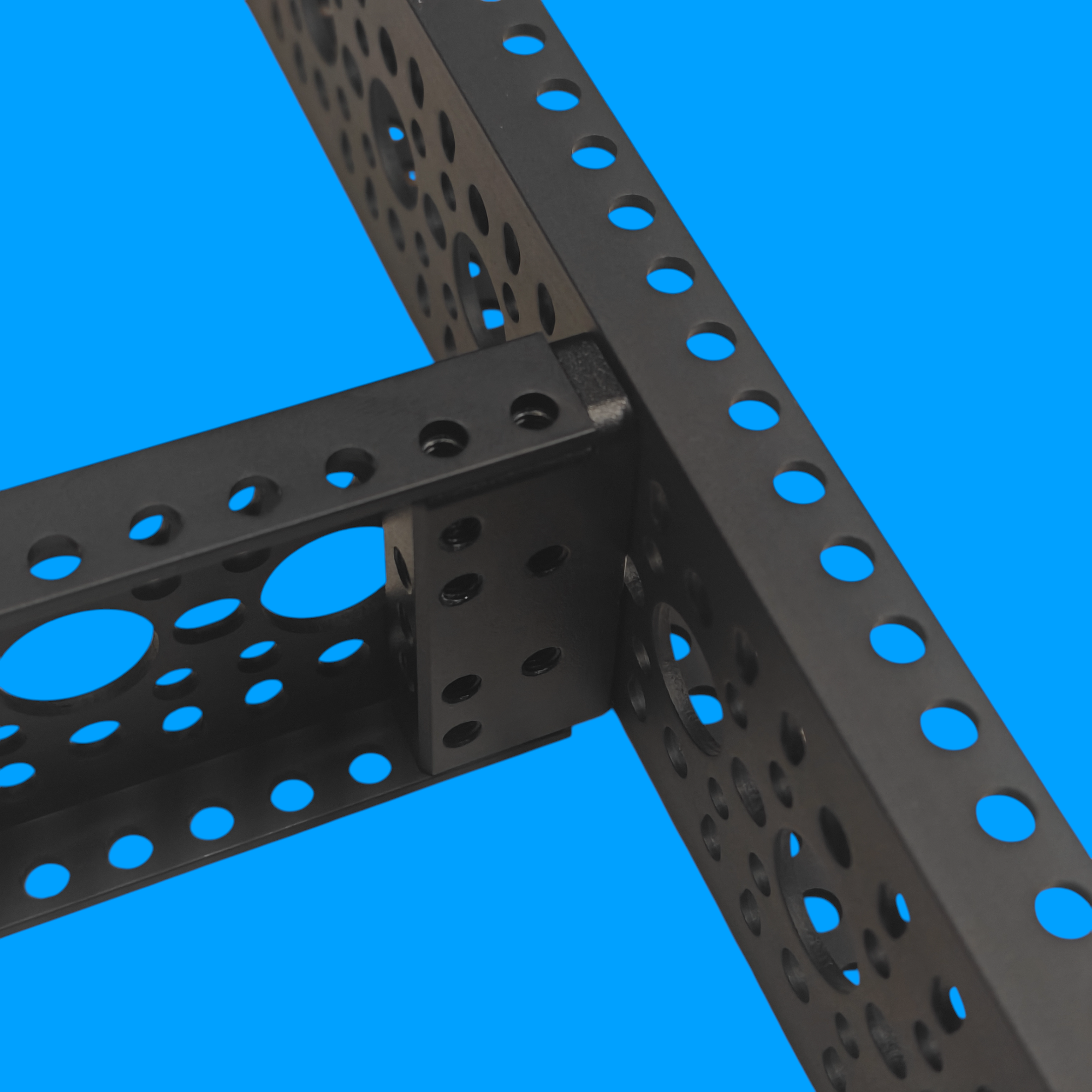

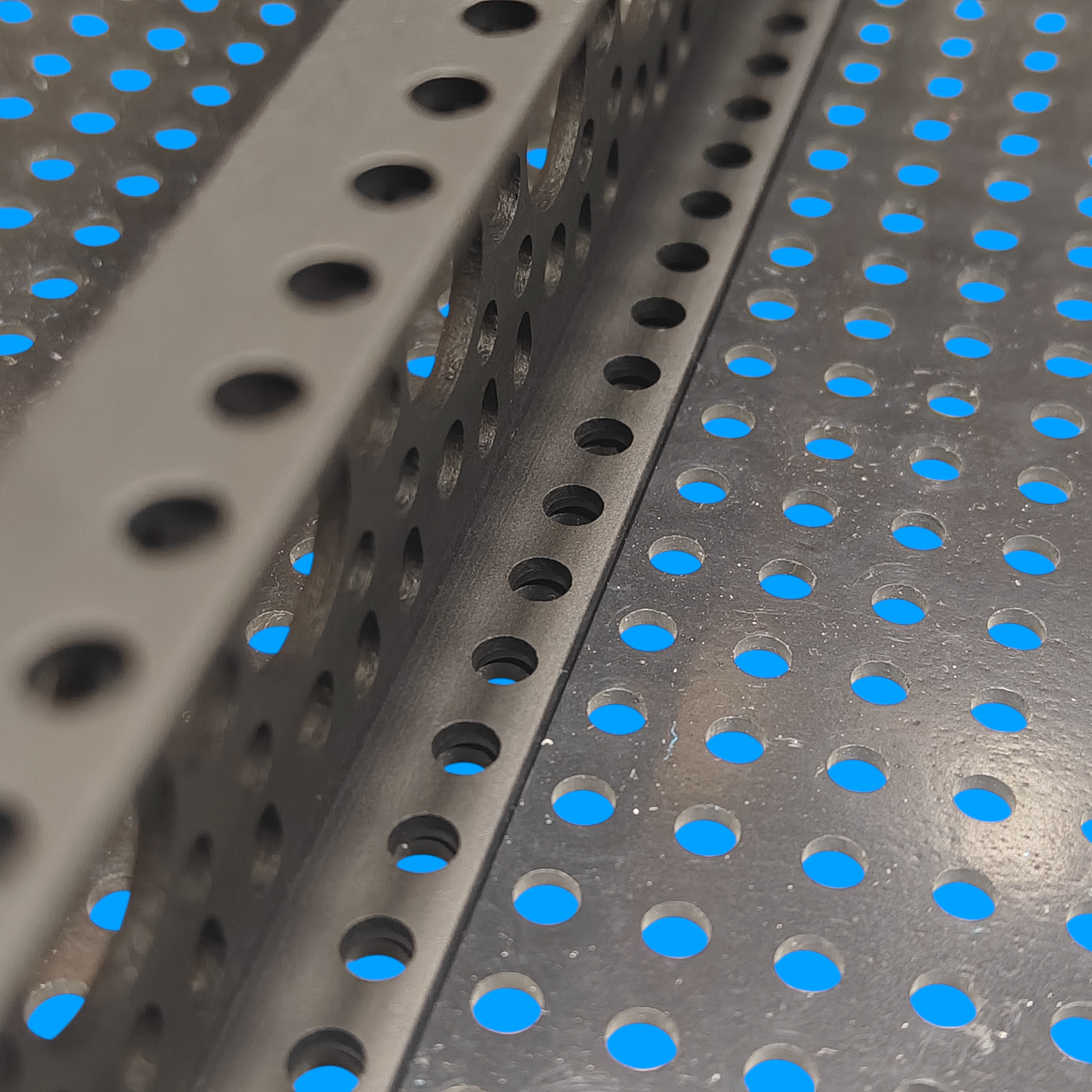

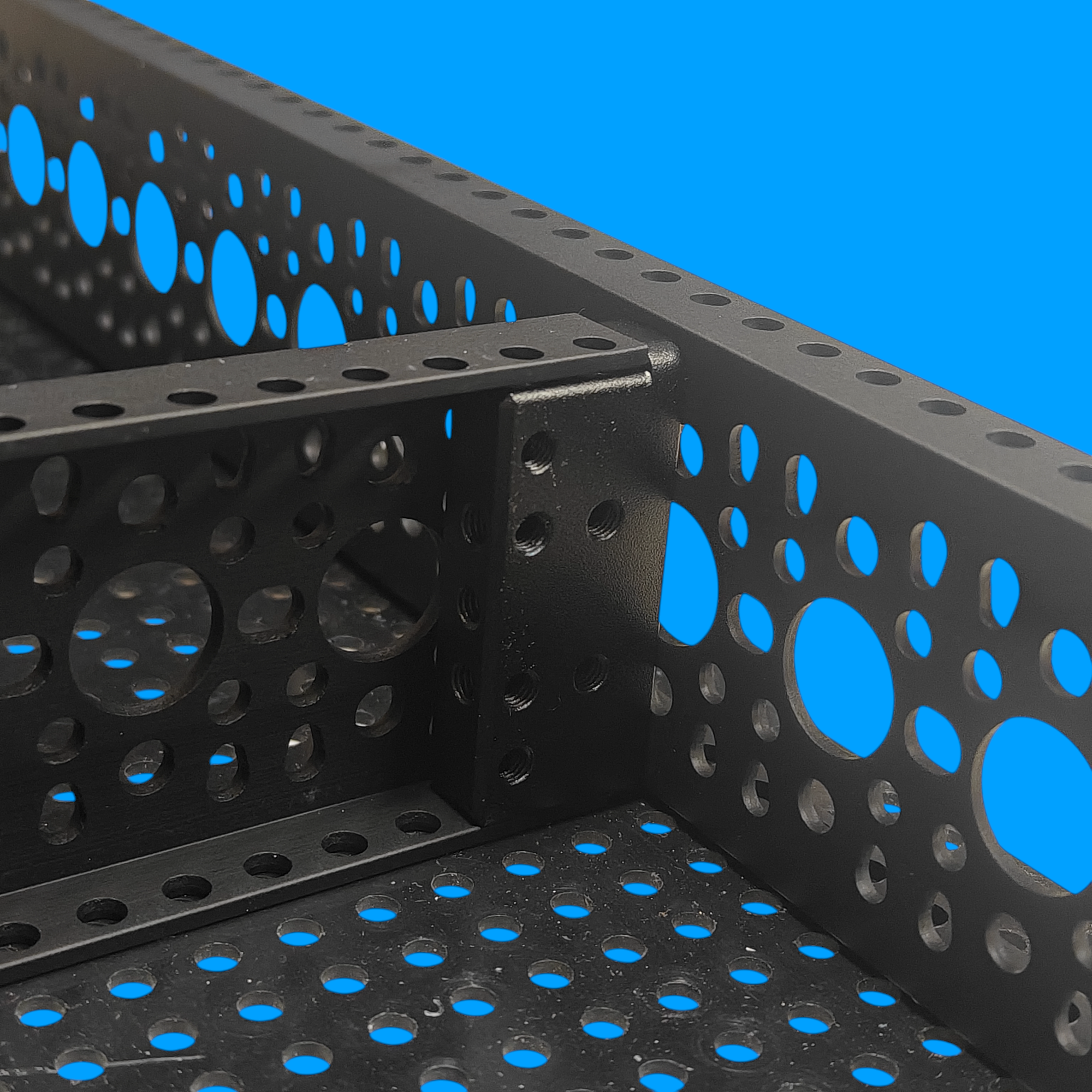

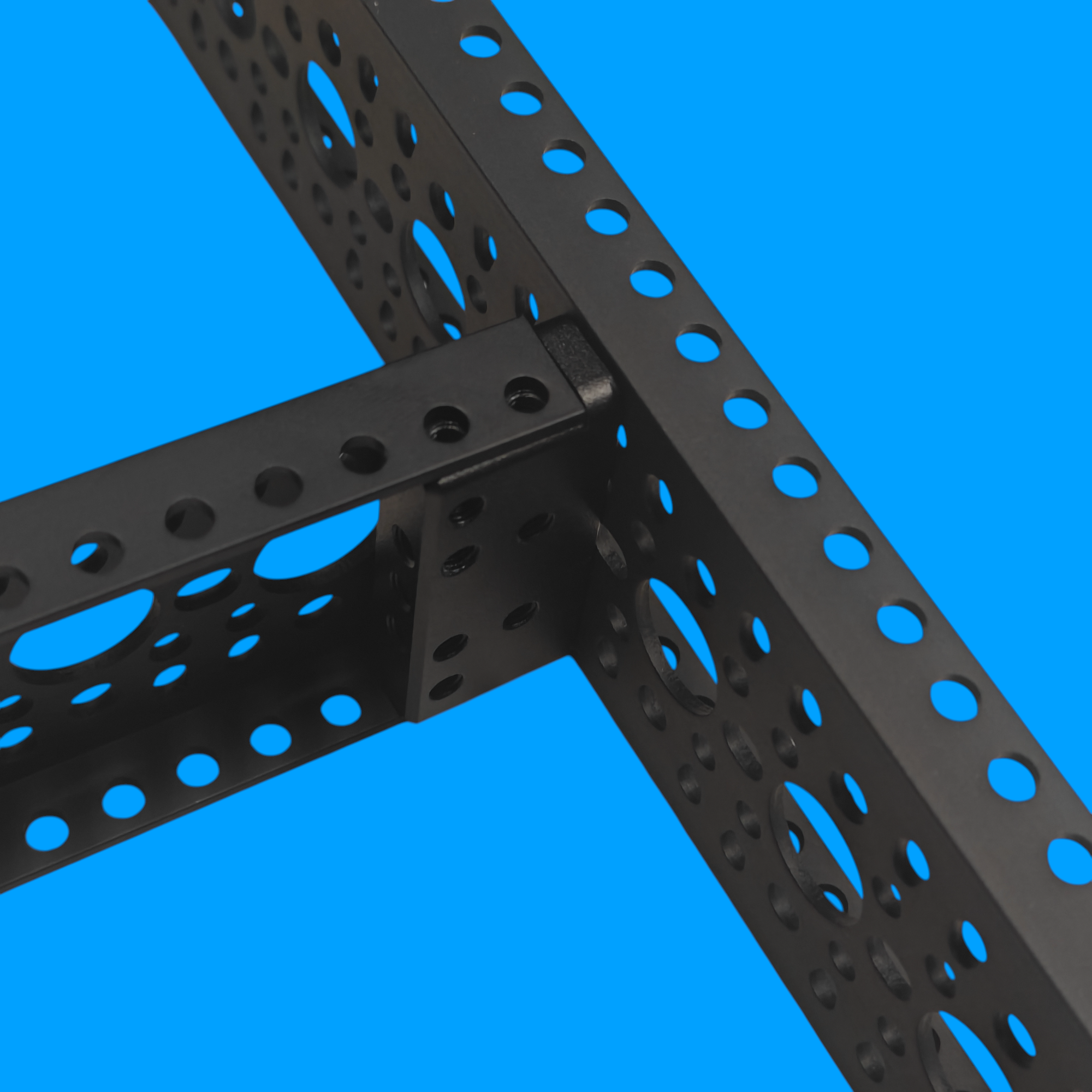

• Accessory Compatibility: Works with SWYFT Channel Endcaps, Bearings, and ABS Grid Plates for expanded building possibilities.

Specifications

• Material: Aluminum 6061, Black Anodized
• Width: 48mm
• Thickness: 2mm
• Hole Patterns:
  • 3mm diameter for REV FTC Structure
  • 4mm diameter on 8mm grid for goBILDA FTC Structure
  • 10-32 spaced at 1" for FRC mounting
  • Bearing holes: 14mm OD fit for 8mm ID shafts
• Length: 424mm
• Bearing Holes: 17

SWYFT Channel is the foundation for strong, adaptable robot designs, from drivetrains to custom frameworks. Its multi-compatible hole patterns and precise manufacturing make it a go-to choice for FTC teams aiming for efficiency and reliability.
