Bearing Plates

Retain bearings from popping out of plates — or mount bearings in strong, precise plates — with Bearing Plates. Machined from Aluminum 6061 and black anodized, these plates are perfect for dead axle and live axle setups in FTC and FRC. Designed by SWYFT Robotics and sold in packs of 10.

Key Features

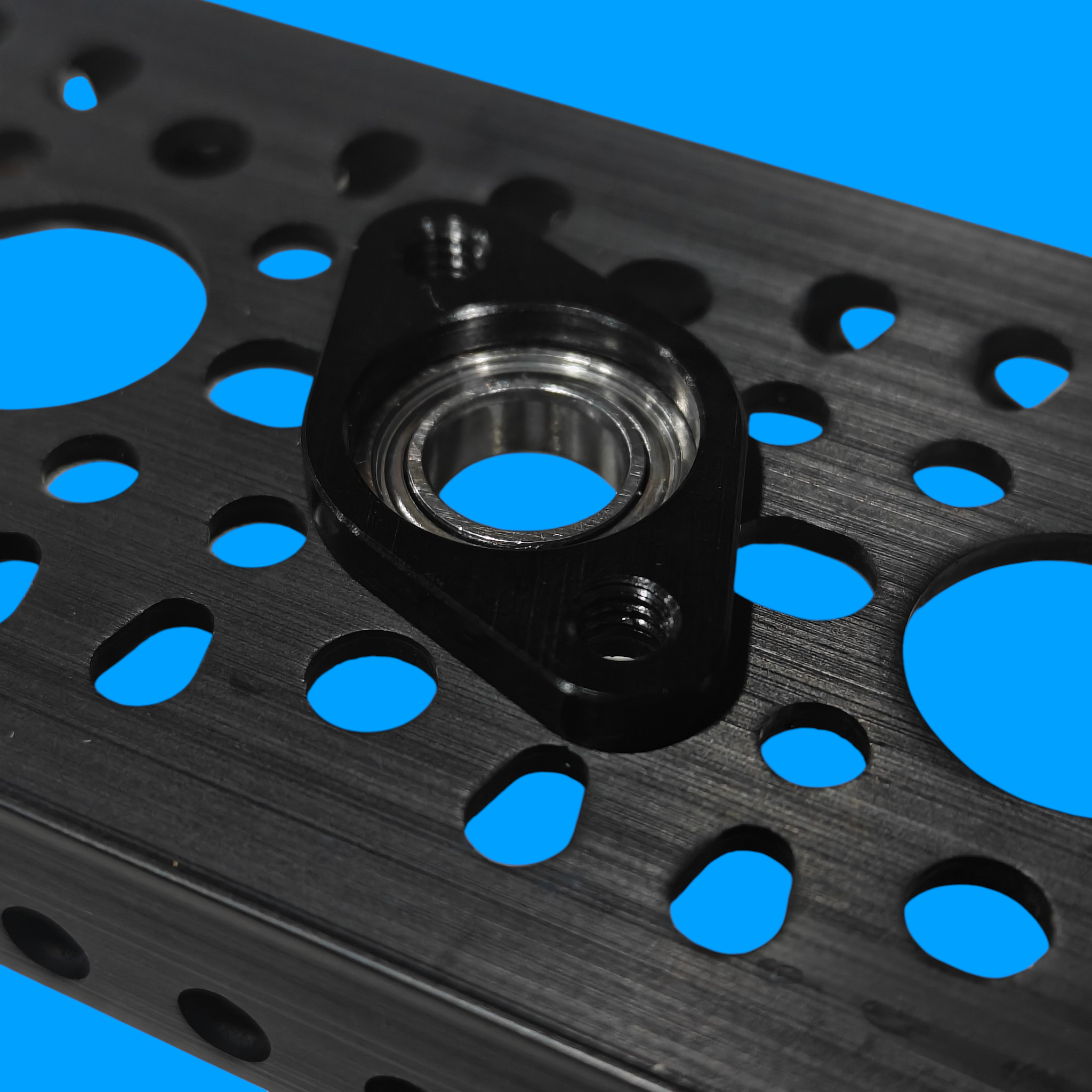

• Retain or mount: Keep bearings from popping out of plates, or mount bearings in strong, precise plates.

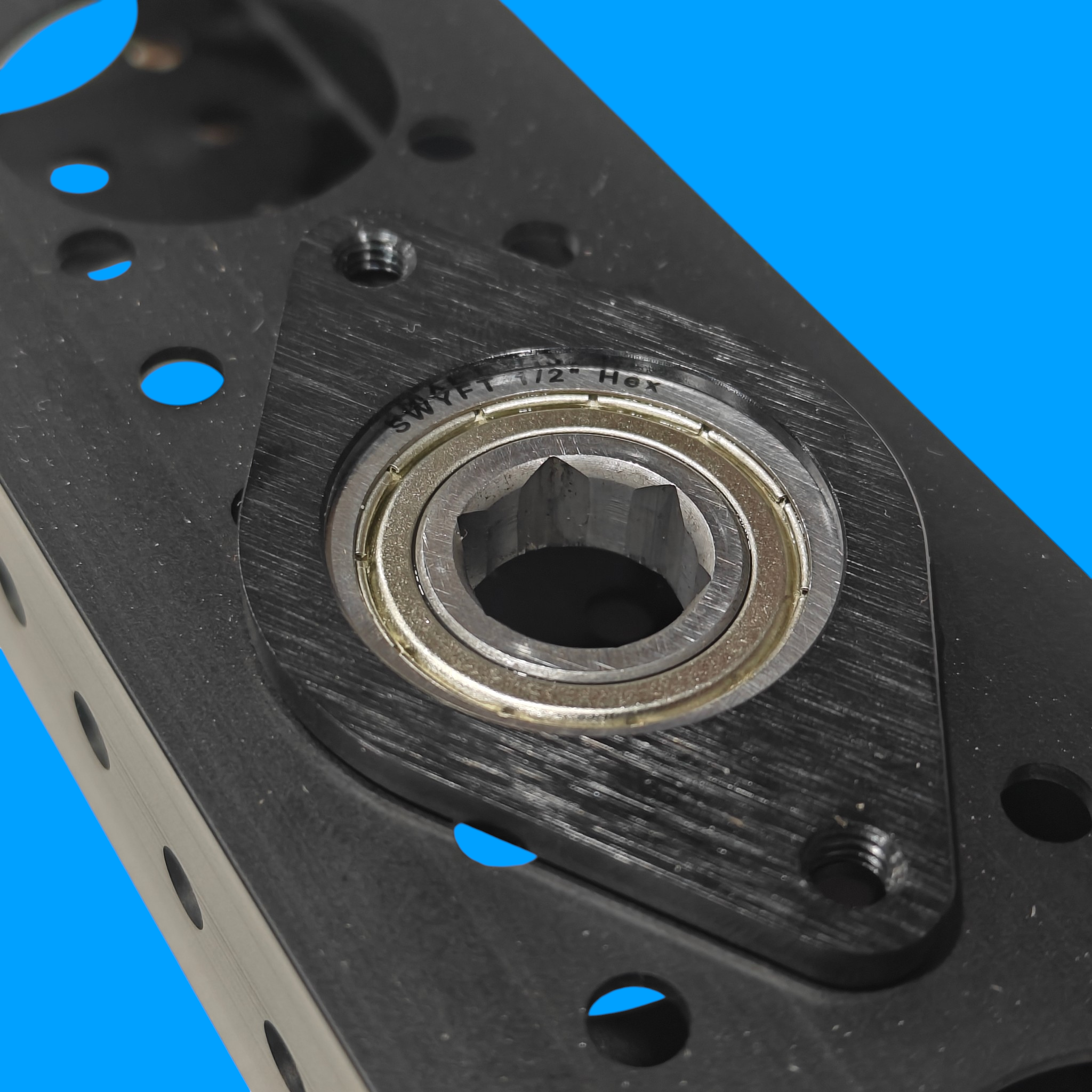

• Dead axle and live axle: Perfect for both dead-axle and live-axle setups.
• Aluminum 6061: Black anodized for strength, corrosion resistance, and a clean look.

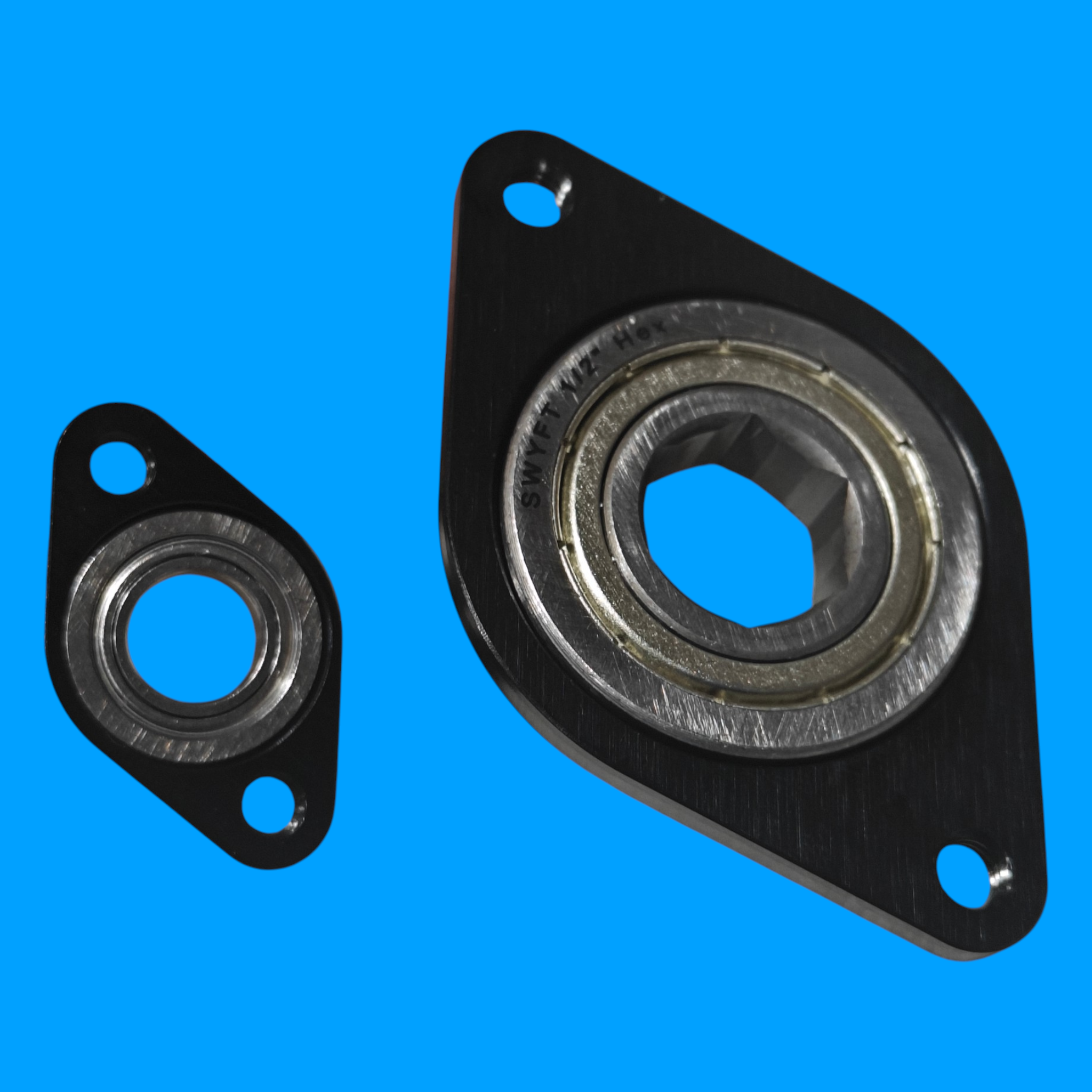

• 1/2" hex variants: 10-32 tapped holes at 2" CTC.
• 8mm round variant: M4 tapped holes at 22.627 mm CTC.
• Thin options: 8mm and thin 1/2" hex plates are 3mm thick for compact assemblies.

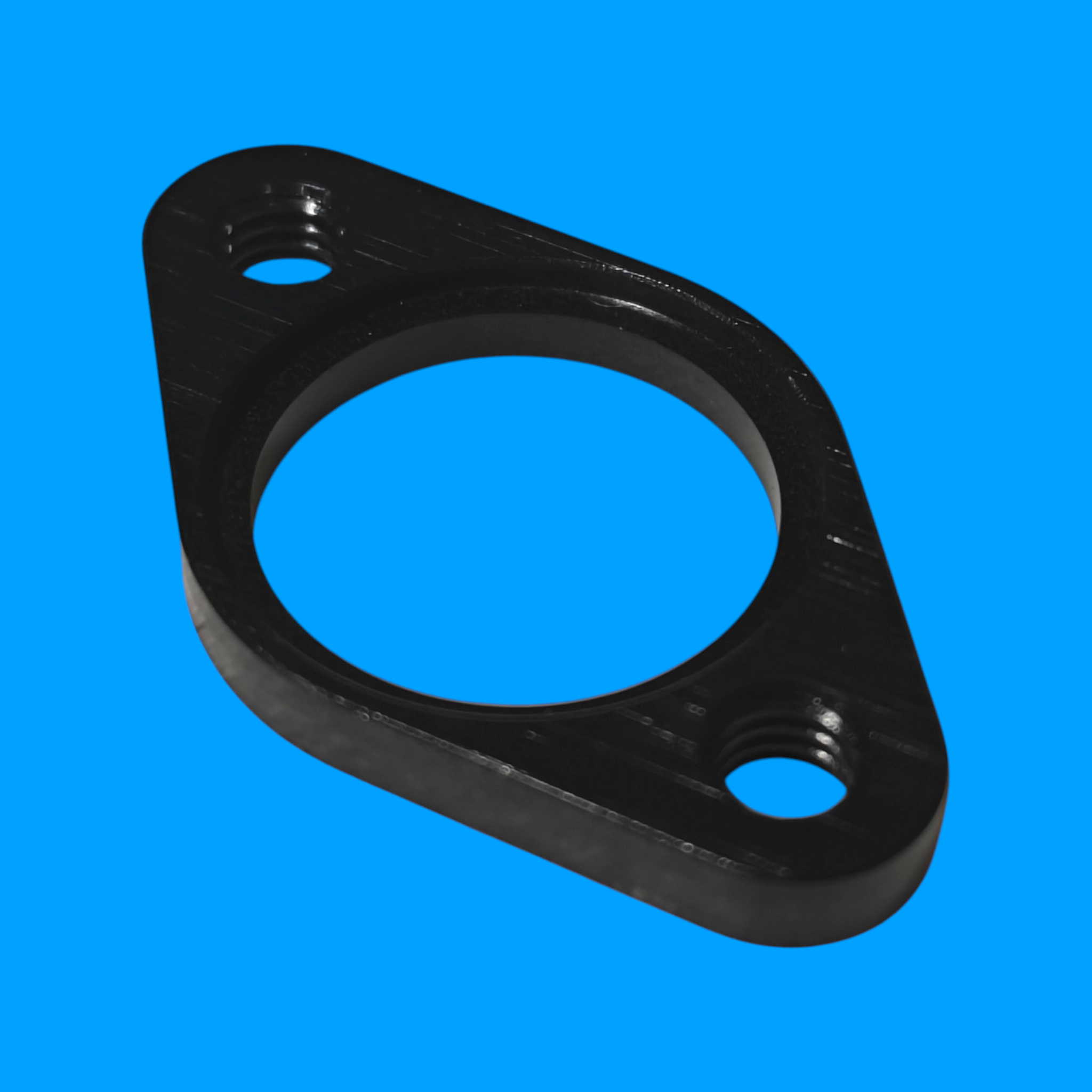

• Thick 1/2" hex (BIG): 8mm thick, intended to support bearing loads.
• Pack of 10: Every variant ships as a 10 pack.

Specs

• Material: Aluminum 6061, black anodized

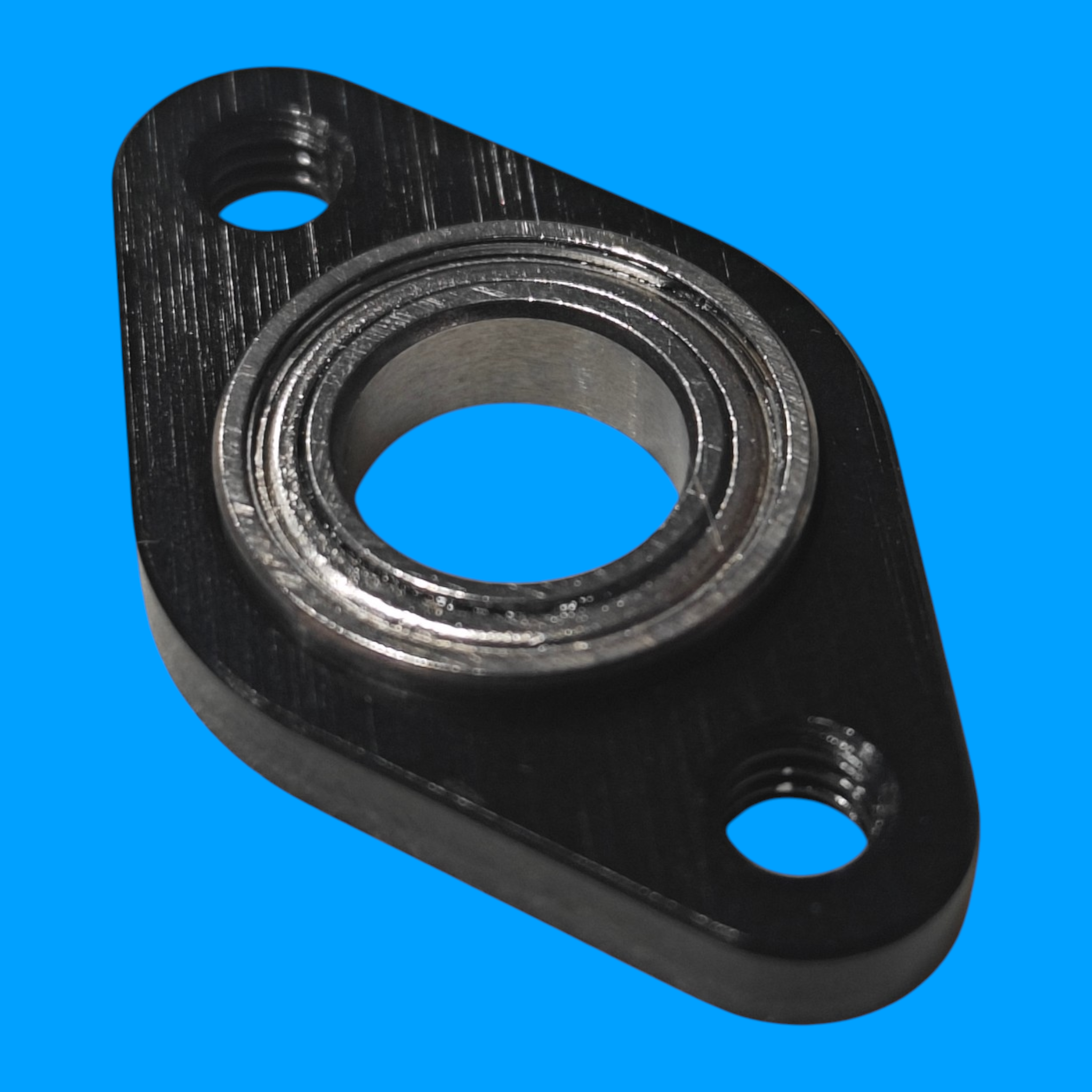

• 8mm Round: M4 tapped holes at 22.627 mm CTC; 3mm thick

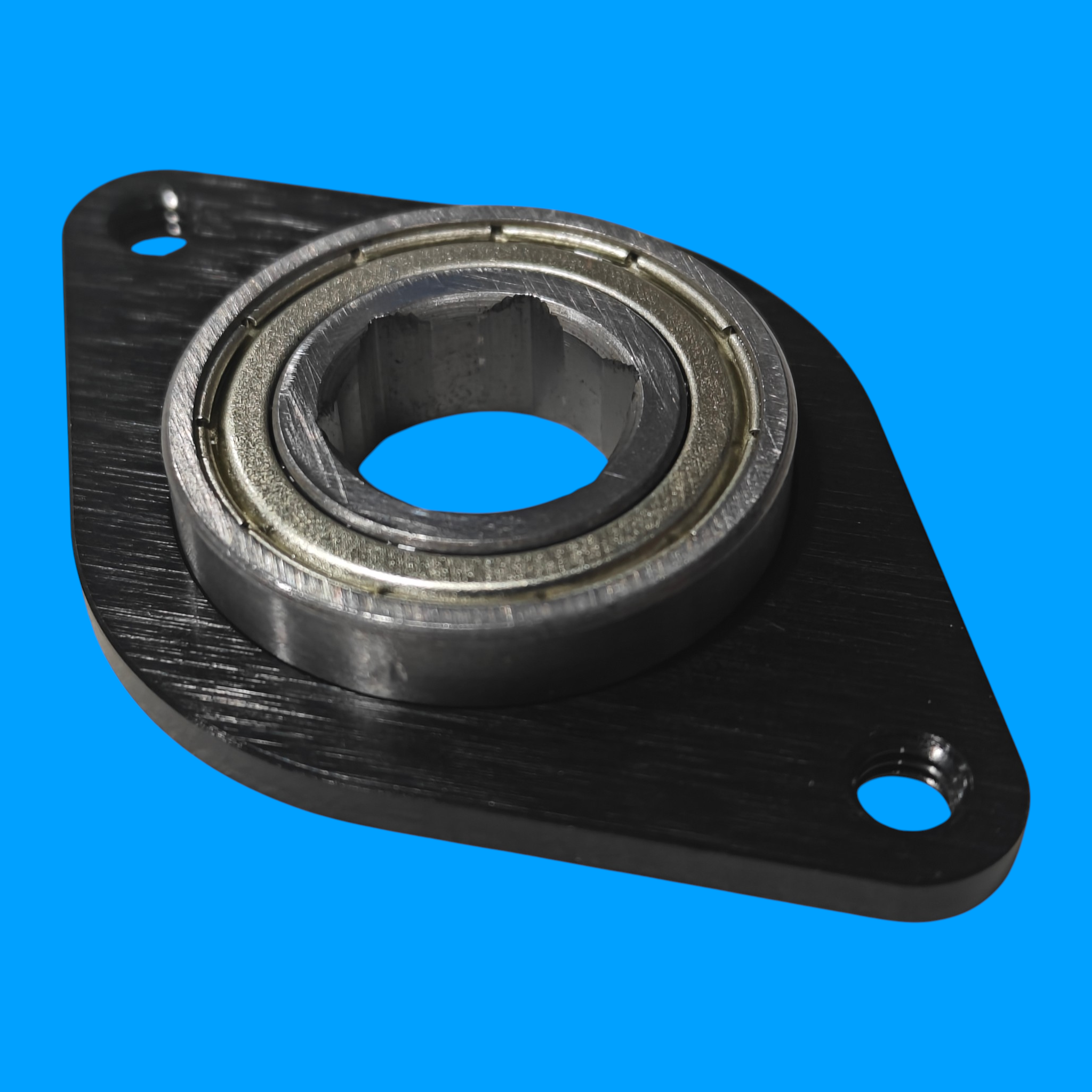

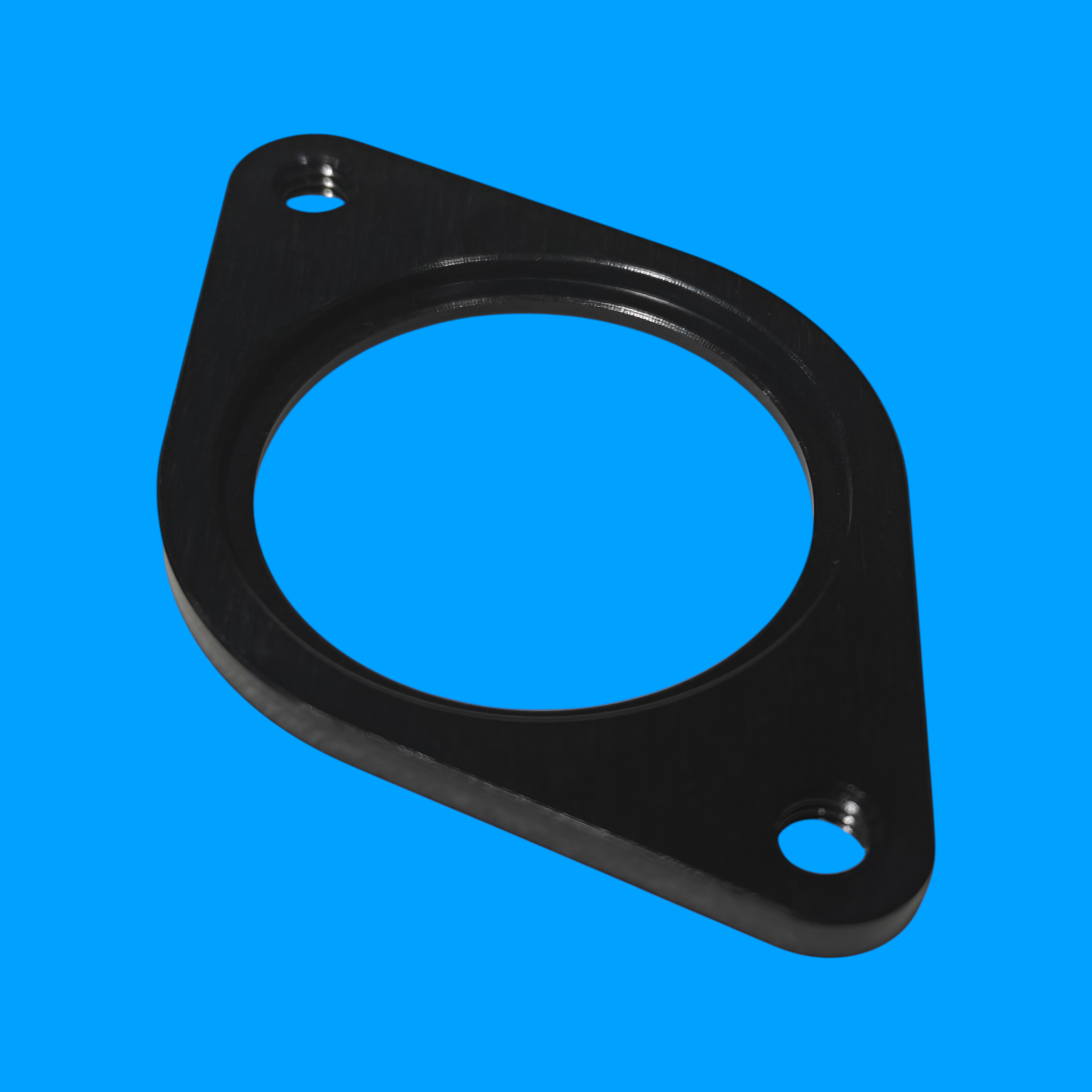

• 1/2" Hex Thin: 10-32 tapped holes at 2" CTC; 3mm thick
• 1/2" Hex Thick (BIG): 10-32 tapped holes at 2" CTC; 8mm thick
• Pack size: 10

SWYFT Bearing Plates for FTC and FRC, designed by SWYFT Robotics.
