HTD 5mm Pitch Timing Belts
HTD 5mm Pitch Timing Belts
HTD 5mm Pitch Timing Belts

HTD 5mm Pitch Timing Belts

SKU: 150-5M-9
$2.49
$4.99
$2.49
Limited-Time Offers, End in: 151D 8H 23M 0S
Tooth Count: 30 Tooth
Width: 9mm Width

A 165-piece competition pack is available in 9mm and 15mm widths — the same mix in both widths, for less than buying the belts separately. Select 165PCS Belt Bundle, then 9mm or 15mm:

Size Qty Size Qty Size Qty
30T ×10 35T ×10 40T ×10
45T ×10 50T ×10 55T ×10
60T ×10 65T ×10 70T ×10
75T ×8 80T ×8 85T ×8
90T ×8 95T ×8 100T ×6
110T ×5 120T ×4 130T ×4
140T ×3 150T ×3 160T ×3
170T ×2 180T ×1 190T ×1
200T ×1 220T ×1 250T ×1

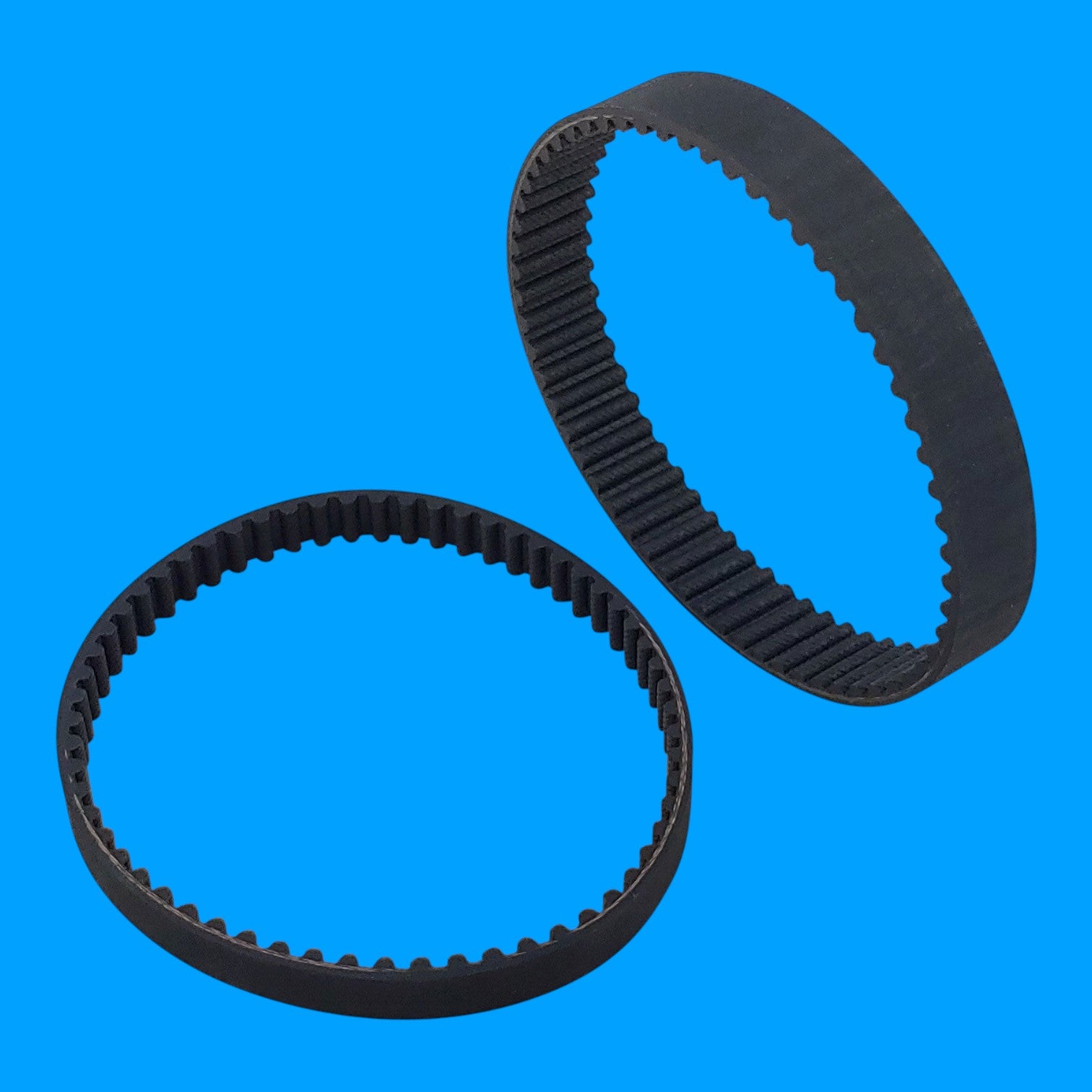

Timing belts are a lighter, more efficient alternative to chain. When installed correctly, timing belts require no tensioning. The HTD tooth profile results in a high strength power transmission that is suited for the high demanding loads of FRC robots.

The HTD belts have fiberglass tensile cord for superior strength, longevity and resistance to elongation.

The HTD belts come in a variety of sizes and widths to fit even the strictest design requirements.

All belts are neoprene coated fiberglass tensile cord.

Timing belt center-to-center distance calculator: https://www.reca.lc/belts

Full pack list: Google Sheet
