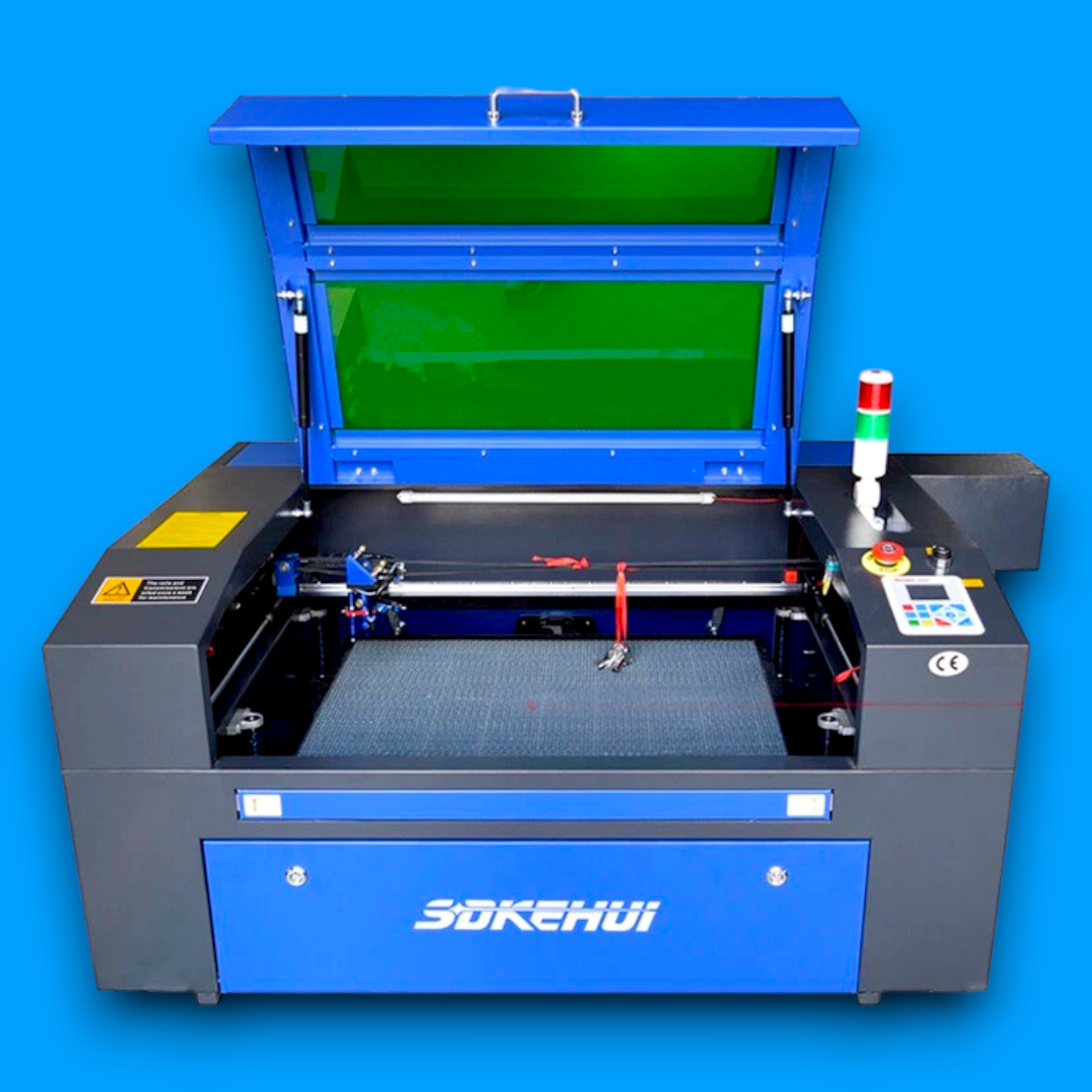

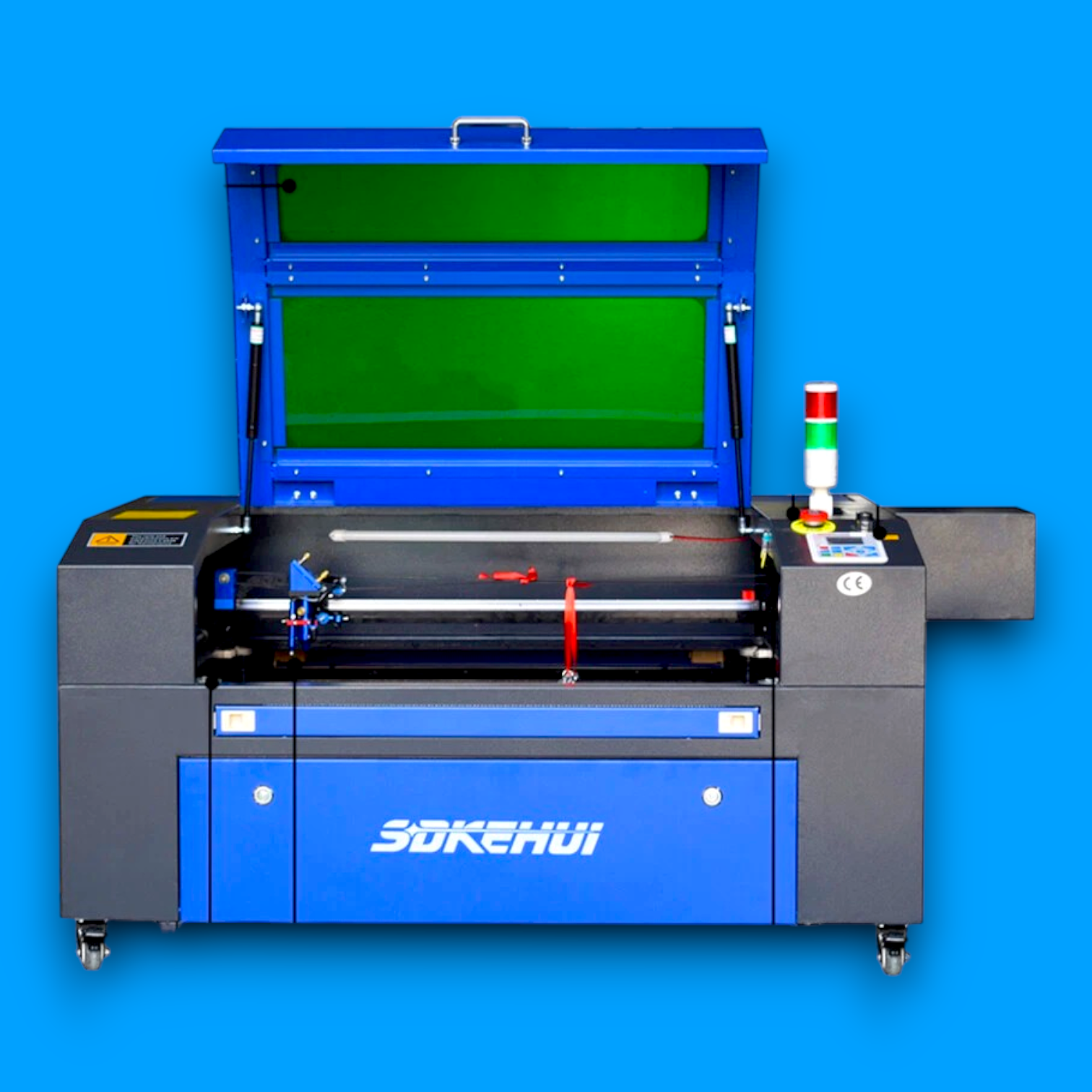

Compact 100W 27.6" x 19.6" CO2 Laser Cutter

CO2 Laser Cutter: The Ultimate Build Season Advantage

Tired of outsourcing parts and waiting for deliveries during build season?

Take full control with this compact 100W CO₂ Laser Cutter. Designed for FRC and FTC teams that need reliable performance in a smaller footprint, it offers excellent precision, modern controls, and the ability to handle most robot parts and sponsor panels with ease.

This machine empowers your team to:

• Rapid Prototyping — Quickly iterate on designs and test concepts before committing to final production. Cut custom gussets, brackets, intake components, and more in minutes.
• Cost Savings — Cut your own parts from SWYFT Composite (SRPP), delrin, acrylic, wood, and other common robotics materials. Reduce outsourcing costs and lead times.
• Precision Cutting & Engraving — Effortlessly cut SWYFT Composite (SRPP) and other non-metallic materials with pinpoint accuracy. Create custom robot parts, intricate designs, and professional sponsor panels.
• Compact Yet Capable — Generous 27.6" × 19.6" (700 × 500 mm) work area is perfect for most FRC and FTC parts. Front and rear pass-through doors allow you to process even longer materials.
• Customization & Branding — Personalize your robot with unique cutouts, engravings, and team logos.
• STEM Learning — Engage students in hands-on CAD-to-part workflows and advanced manufacturing.
• Easy to Use — Intuitive TL-A1 control panel with 2.4" color screen + full LightBurn compatibility. Upload designs via USB, Ethernet, or WiFi and cut with precision.
• Safety First — Password-protected control panel, cover interlock, E-Stop, water protection, flame-retardant window, and built-in air assist keep your team safe.

It’s more than a tool — it’s your team’s competitive edge.

Why This Compact 100W Laser for FRC & FTC Teams?

• Optimized for SWYFT Composite (SRPP): Delivers clean cuts on our lightweight, high-strength SWYFT Composite sheets with minimal delamination when using proper settings.
• Space-Efficient Design: Smaller footprint makes it ideal for teams with limited shop space while still offering enough capacity for the majority of robot components.
• Modern & Student-Friendly: TL-A1 controller, one-touch autofocus, red dot guidance, large transparent viewing window, and color-coded power/speed settings make operation simple for students and mentors.
• Reliable Performance: Reci T2 100W laser tube with external circulating water cooling and long service life (up to 8,000–12,000 hours depending on usage).
• US-Based Support: Headquartered in the U.S. with fast domestic shipping and responsive technical support. U.S. standard plugs included for American customers.

Key Features

TL-A1 Control Panel 2.4" color screen motion control system with AutoLaser software. Supports CorelDRAW, AutoCAD, Illustrator, and custom development. 3-axis + laser control.

Rapid Autofocusing Pre-installed autofocus tool — quickly correct focus directly from the control panel with no manual tools required.

Double Engraving Platforms Honeycomb platform for stability and heat resistance on smaller items. Aluminum blade platform for rigid support on larger pieces.

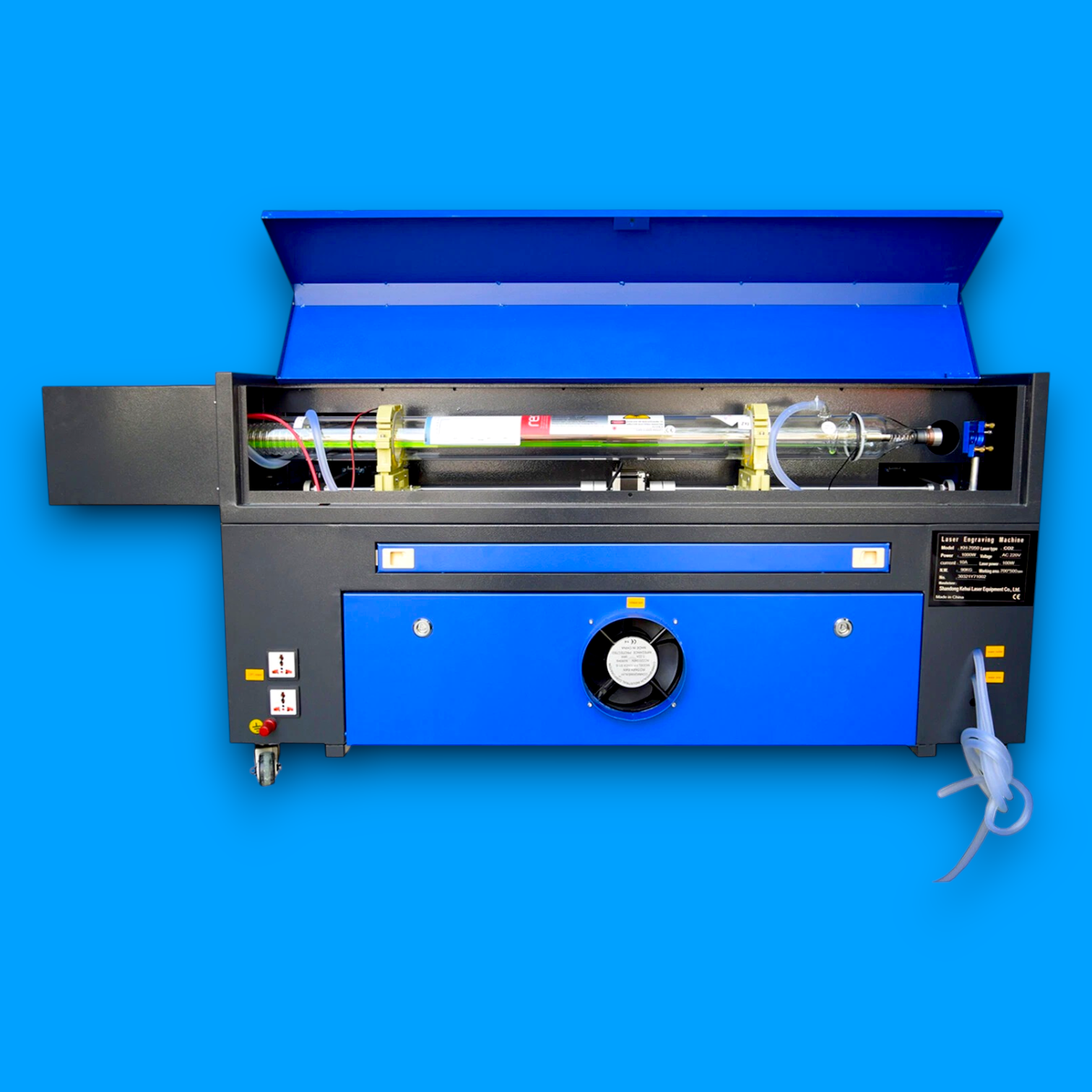

Powerful Reci T2 Laser Tube 100W sealed CO₂ tube (1250 ± 20 mm) rated for up to 8,000 hours (or 12,000 hours at lower settings).

Advanced Connectivity USB 2.0 (flash drive + direct PC), Ethernet, and WIFI. Supports offline U-Disk operation.

Built-in Air Assist + Exhaust Pre-installed air compressor clears debris and gases for cleaner cuts. Built-in exhaust fan requires no extra installation.

Red Dot Guidance + Laser Warning Lights Red dot pointer for easy positioning. Red light = working; green light = ready.

Large Transparent Viewing Window Fully transparent acrylic window with flame-retardant material for clear visibility and safety.

Front & Rear Pass-Through Doors Feed material from either direction to cut pieces longer than the bed size. Electric workbed lift (20 cm travel) with auto focus compensation.

Robust & Interference-Free Design Reinforced housing. Power supply and motherboard installed separately to avoid magnetic interference. LCD display on power supply shows current and error diagnostics.

Comprehensive Safety Systems Password lock on control panel • Automatic laser shutoff when cover is opened • Water-cut protection • E-Stop button • Flame-retardant window.

Technical Specifications

Engraving Area: 700 × 500 mm (28" × 20")

Workbench Adjustment: 20 cm electric up and down

Double Engraving Platforms: Honeycomb + aluminum knife cutting platform

Engraving Speed: 0–800 mm/s

Engraving / Cutting Depth: 0–10 mm

Auxiliary Positioning: Red light positioning

Drive Type: Digital two-phase stepper driver

Working Motor: 57 hybrid stepping motor

Operating Temperature: 5–50°C

Working Humidity: 5%–95% non-condensing

Software: AutoLaser (included)

Collaboration Software: CorelDRAW, AutoCAD, Illustrator, LightBurn

Software Environment: Windows (LightBurn also compatible with macOS & Linux)

Data Transmission: USB 2.0, network connection, offline U-Disk, WiFi

Power Supply: AC 110 V ± 10% / 60 Hz

Product Size: 1160 × 875 × 600 mm

Packing Size: 1530 × 995 × 800 mm

Product Weight: 93 kg

Laser Details:

• Laser Type: Reci T2 sealed CO₂ glass laser tube
• Laser Power: 100 W
• Laser Tube Length: 1250 ± 20 mm
• Laser Wavelength: 10.6 µm
• Laser Cooling Mode: External circulating water cooling

Precision: Smallest formed letter 1 mm × 1 mm | Minimum formed text 2 mm × 2 mm

Note: After 3–4 hours of continuous work, take a break of about 30 minutes for optimal laser tube longevity.

Software & File Support

• Recommended: LightBurn (best for robotics teams)
• Also fully compatible with AutoLaser (included), CorelDRAW, AutoCAD, Illustrator
• Supported formats: JPG, BMP, AI, PLT, DXF, and more
• Color vector / raster assignment system for easy multi-power jobs

Package Included

• 100W CO₂ Laser Cutter with TL-A1 controller
• Reci T2 100W laser tube (installed)
• Built-in Air Assist compressor
• External circulating water cooling components
• U-Disk with software
• USB data cable + power cable (U.S. standard plug)
• Repair tools
• Smoke/exhaust components
• User manual

Materials It Cuts Beautifully

SWYFT Composite (SRPP) — including 1.75 mm, 3 mm, and 6 mm structural versions Delrin (acetal), acrylic, polycarbonate, wood, cardboard, leather, fabric, rubber, plastic, and most other non-metallic materials. Not for metal.

Test cuts are recommended. We provide guidance for SWYFT Composite.

Frequently Asked Questions

Q: How thick can it cut? A: Up to ~10 mm depending on material and settings. SWYFT Composite cuts cleanly.

Q: Does it work with LightBurn? A: Yes — fully supported and highly recommended.

Q: What connectivity options are available? A: USB 2.0, U-Disk, WiFi, and Ethernet.

Q: Is it suitable for smaller shops or FTC teams? A: Yes — the compact size makes it ideal for teams with limited space while still handling most robot fabrication needs.

Certifications

FDA Compliant • CE Certified • ISO9001 Quality Certified

Pair this laser with SWYFT Composite sheets for lightweight, high-strength, easy-to-fabricate robot parts that cut beautifully.

This compact 100W model offers excellent value and performance for FRC and FTC teams that want professional results without needing the largest bed size.

Add to cart or contact support@swyftrobotics.com with any questions.

It’s more than a tool — it’s your team’s edge.
