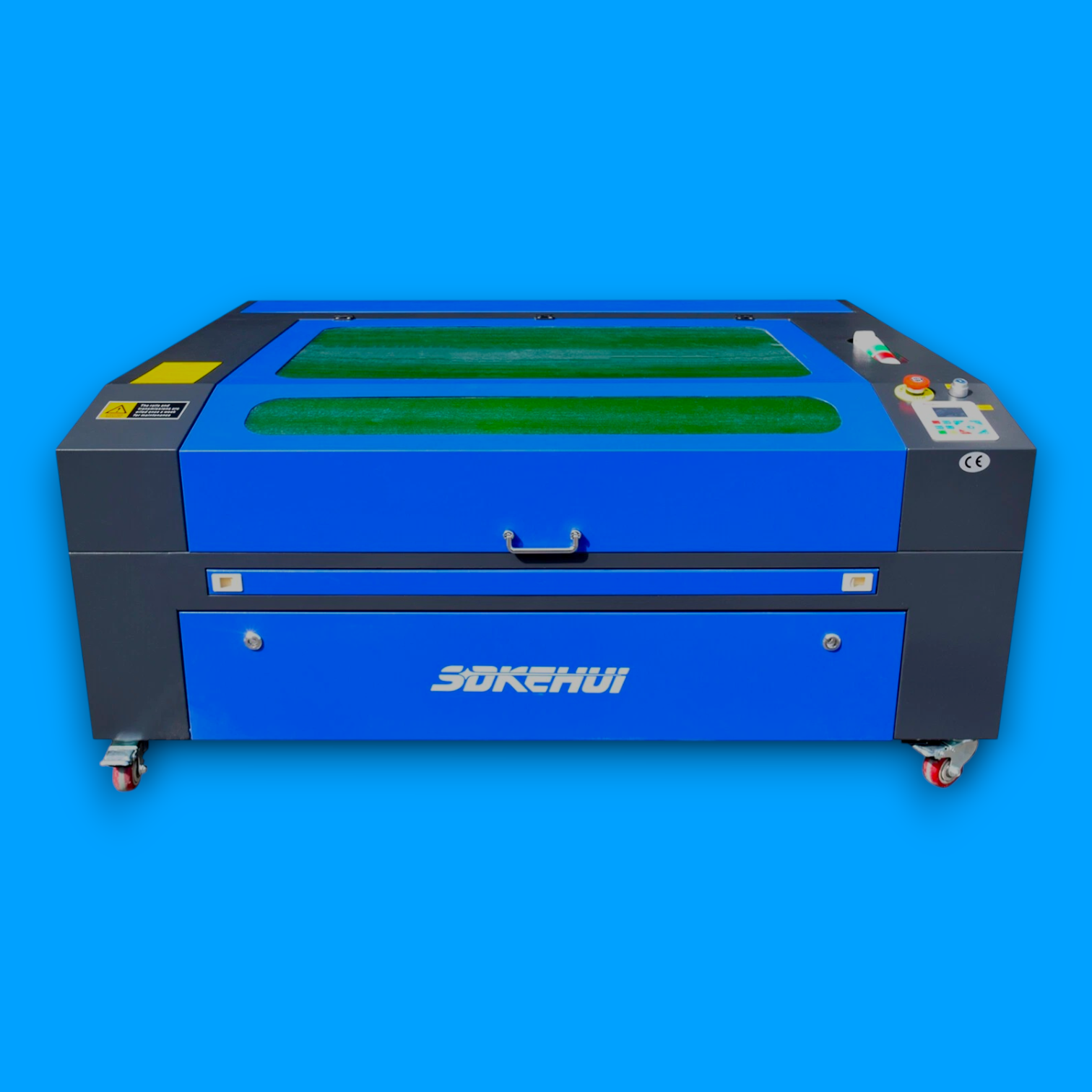

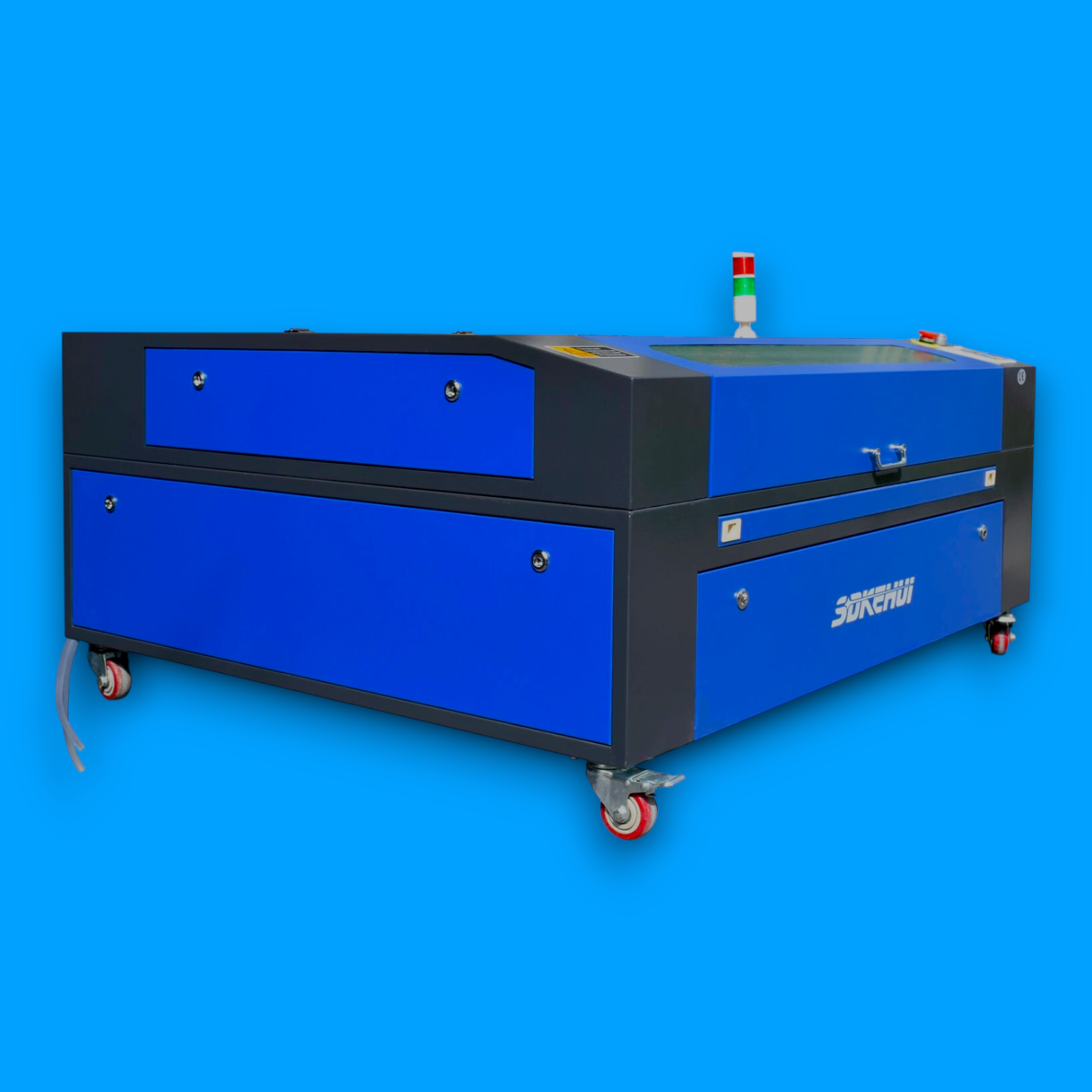

100W 39.4" × 31.5" CO2 Laser Cutter

CO2 Laser Cutter: The Ultimate Build Season Advantage

Tired of outsourcing parts and waiting for deliveries during build season?

Take full control with this 100W CO₂ Laser Cutter. Designed for serious FRC and FTC teams, it delivers an outstanding balance of capacity, features, and value with a generous work area and modern workflow tools.

This machine empowers your team to:

• Rapid Prototyping — Quickly iterate on designs and test concepts before committing to final production. Cut custom gussets, brackets, intake plates, climber components, and more in minutes.
• Cost Savings — Cut your own parts from SWYFT Composite (SRPP), delrin, acrylic, wood, polycarbonate, and other common robotics materials. Dramatically reduce outsourcing fees and shipping delays.
• Precision Cutting & Engraving — Effortlessly cut SWYFT Composite (SRPP) and other non-metallic materials with pinpoint accuracy. Create custom robot parts, intricate mechanisms, professional sponsor panels, and team-branded designs that make your robot stand out.
• Large-Format Capability — Generous 1000 × 800 mm (40" × 32") work area handles full-size FRC side plates, large sponsor graphics, or batch production of multiple parts. Front and rear pass-through doors let you process even longer materials.
• Customization & Branding — Personalize robots with unique cutouts, engravings, and team logos.
• STEM Learning — Engage students in real CAD-to-part workflows and advanced manufacturing techniques.
• Easy to Use — Intuitive TL-A1 control panel with 2.4" color screen + full LightBurn compatibility (also works with AutoLaser, CorelDRAW, AutoCAD, Illustrator). Design in your favorite CAD software, export DXF, and cut — faster than 3D printing for flat parts.
• Safety First — Comprehensive features including automatic cover-interlock shutoff, E-Stop, water-flow protection, flame-retardant viewing window, and more — built with student teams in mind.

It’s more than a tool — it’s your team’s competitive edge.

Why This 100W Laser for FRC & FTC Teams?

• Optimized for SWYFT Composite (SRPP): Excellent results on our lightweight, high-strength SWYFT Composite sheets (including the 6 mm structural version designed for laser cutting). Clean edges with minimal delamination when using proper settings.
• Modern Workflow Features: TL-A1 controller with color screen, WIFI connectivity, direct PC USB, U-Disk, and Ethernet. Color-coded raster/vector assignment makes multi-pass or multi-power jobs simple.
• Student-Friendly & Efficient: One-touch autofocus from the control panel, red dot pointer, large transparent viewing window, and built-in air assist + exhaust keep setups fast and the workspace clean.
• Reliable Performance: Reci T2 100W laser tube (1250 mm) with external circulating water cooling. Reinforced body, separate power supply and motherboard to reduce interference.
• US-Based Support & Service: Headquartered in the U.S. with warehouses worldwide. Fast domestic shipping and responsive tech support when your team needs it most.

Key Features

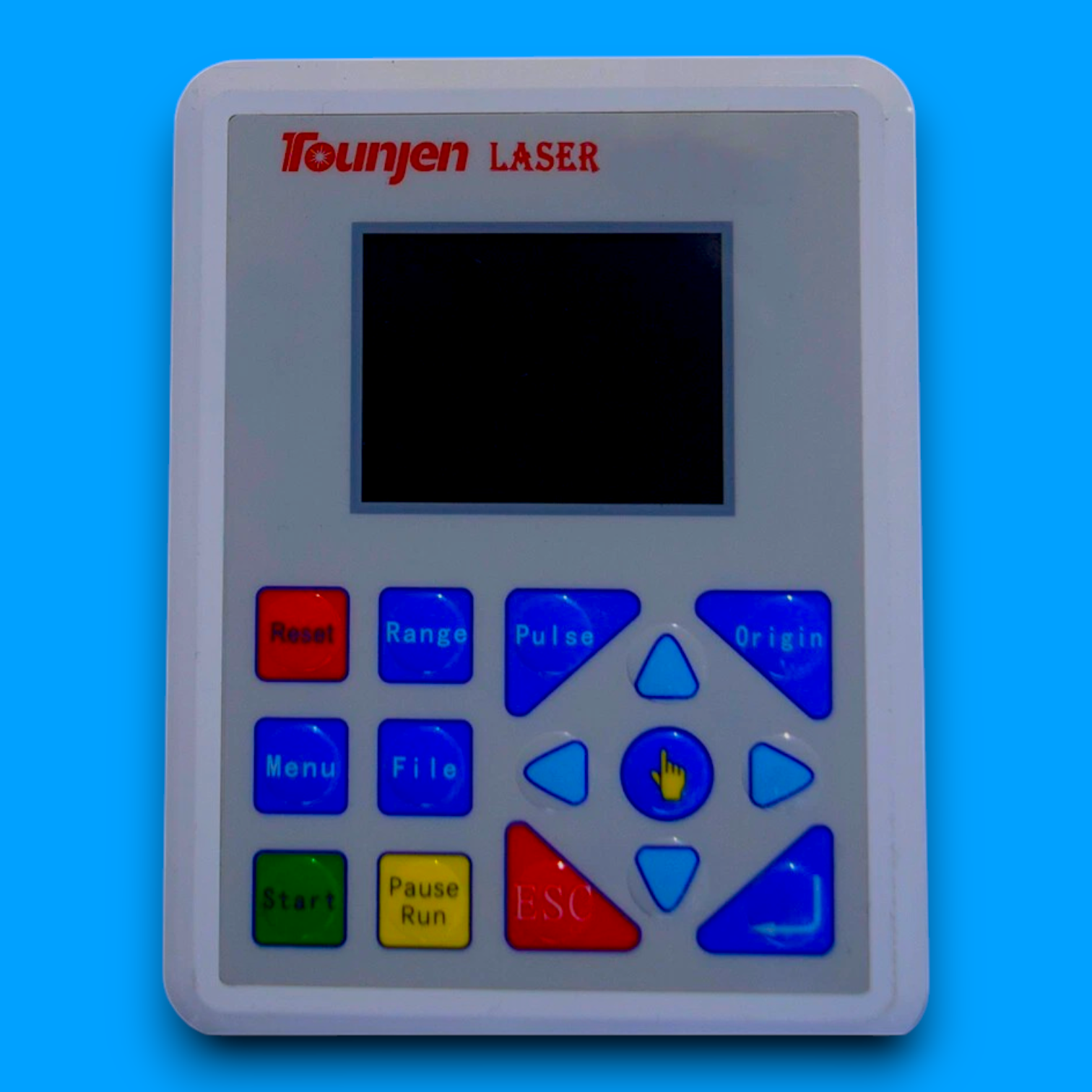

TL-A1 Control Panel Advanced 2.4" color screen motion control system. Equipped with AutoLaser software. Supports CorelDRAW, LightBurn, AutoCAD, Illustrator export. 3-axis + laser control.

Rapid Autofocusing Pre-installed autofocus tool lets you quickly correct focus directly from the control panel.

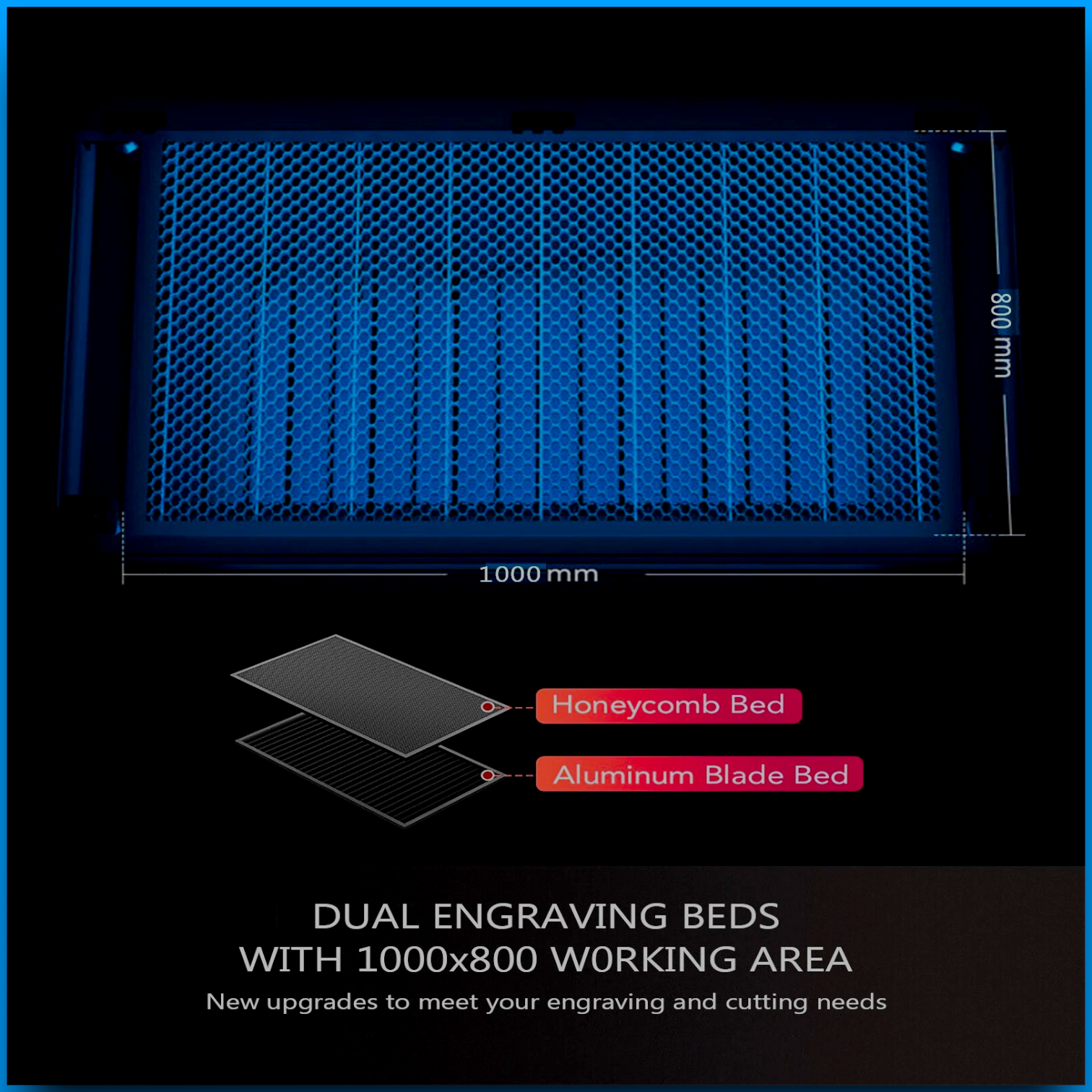

Double Engraving Platforms Honeycomb cutting platform and aluminum knife cutting platform for different material types and sizes.

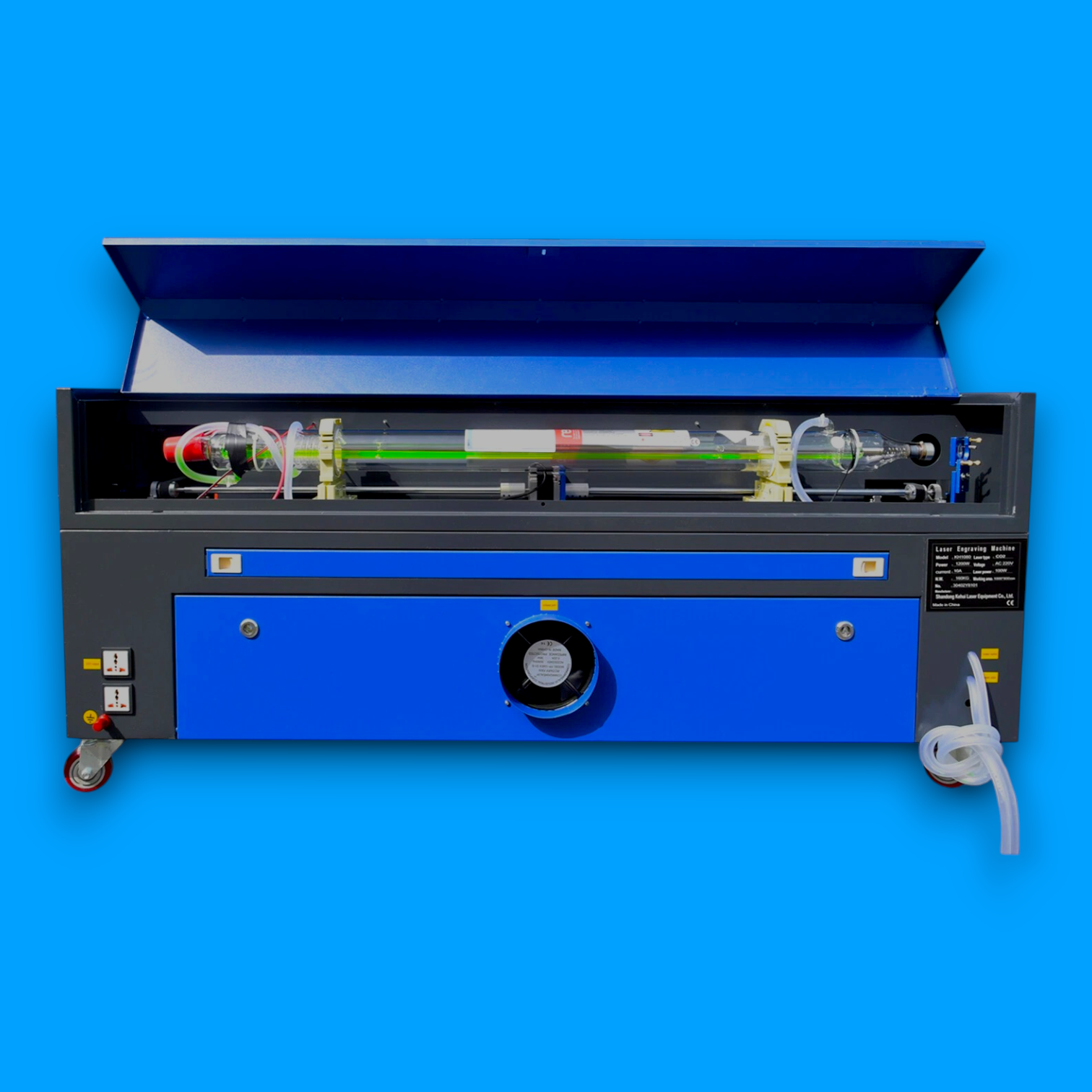

Powerful Reci T2 Laser Tube 100W sealed CO₂ glass laser tube (1250 mm length) with external circulating water cooling for reliable performance and long service life.

Advanced Connectivity USB 2.0, U-Disk, WIFI, and Ethernet support. Work remotely or transfer files easily.

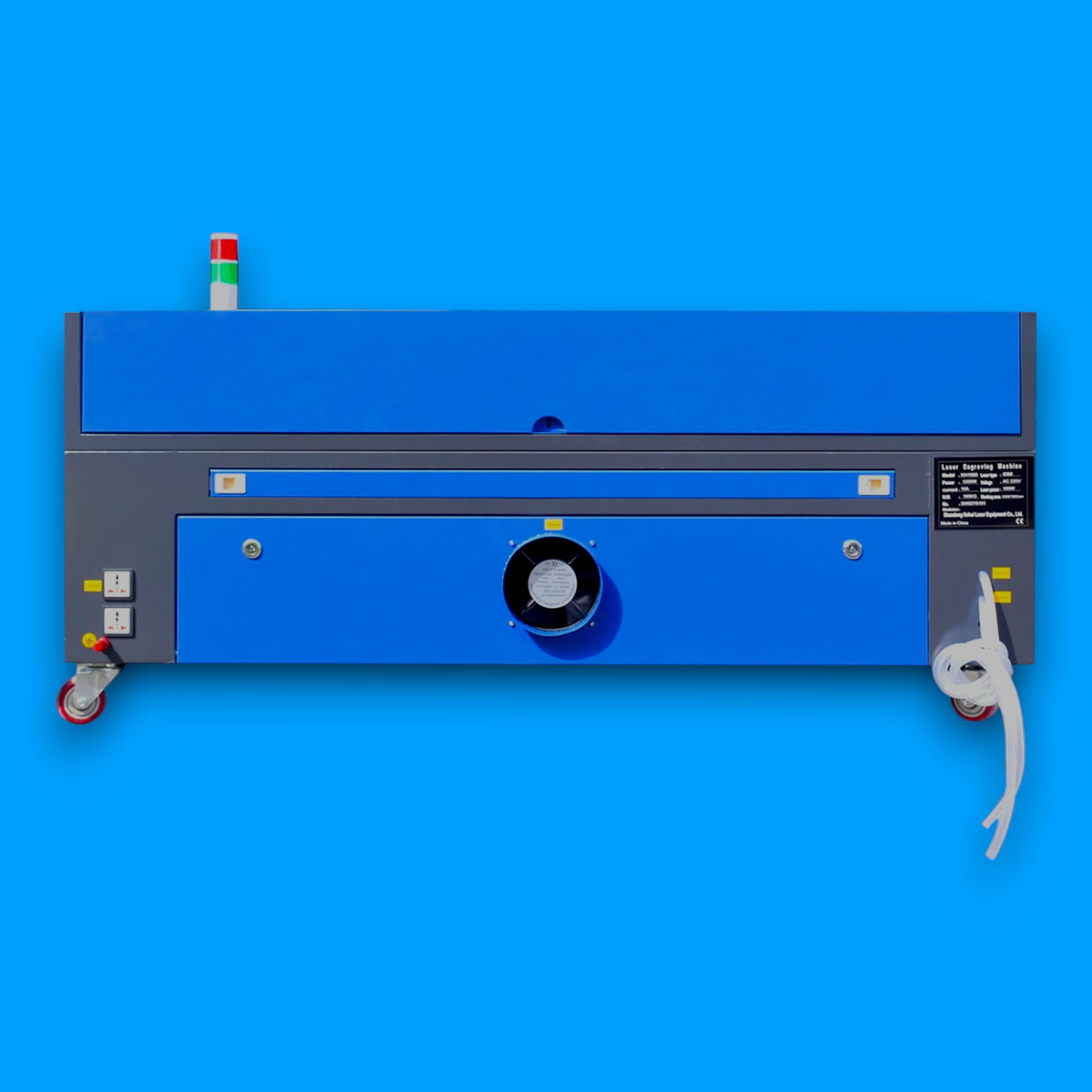

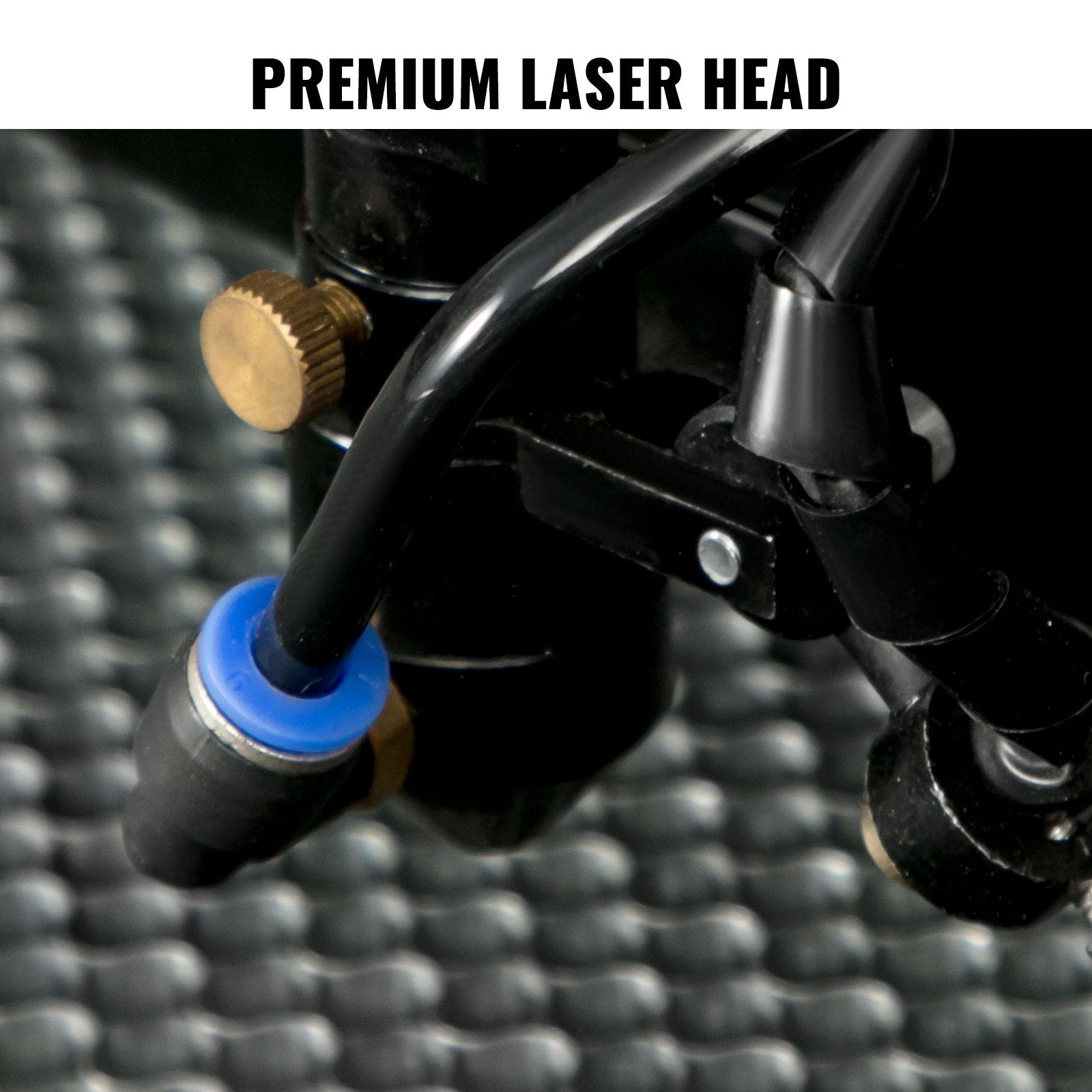

Built-in Air Assist + Exhaust Pre-installed air assist clears debris and gases for cleaner cuts. Built-in exhaust fan keeps the work area efficient.

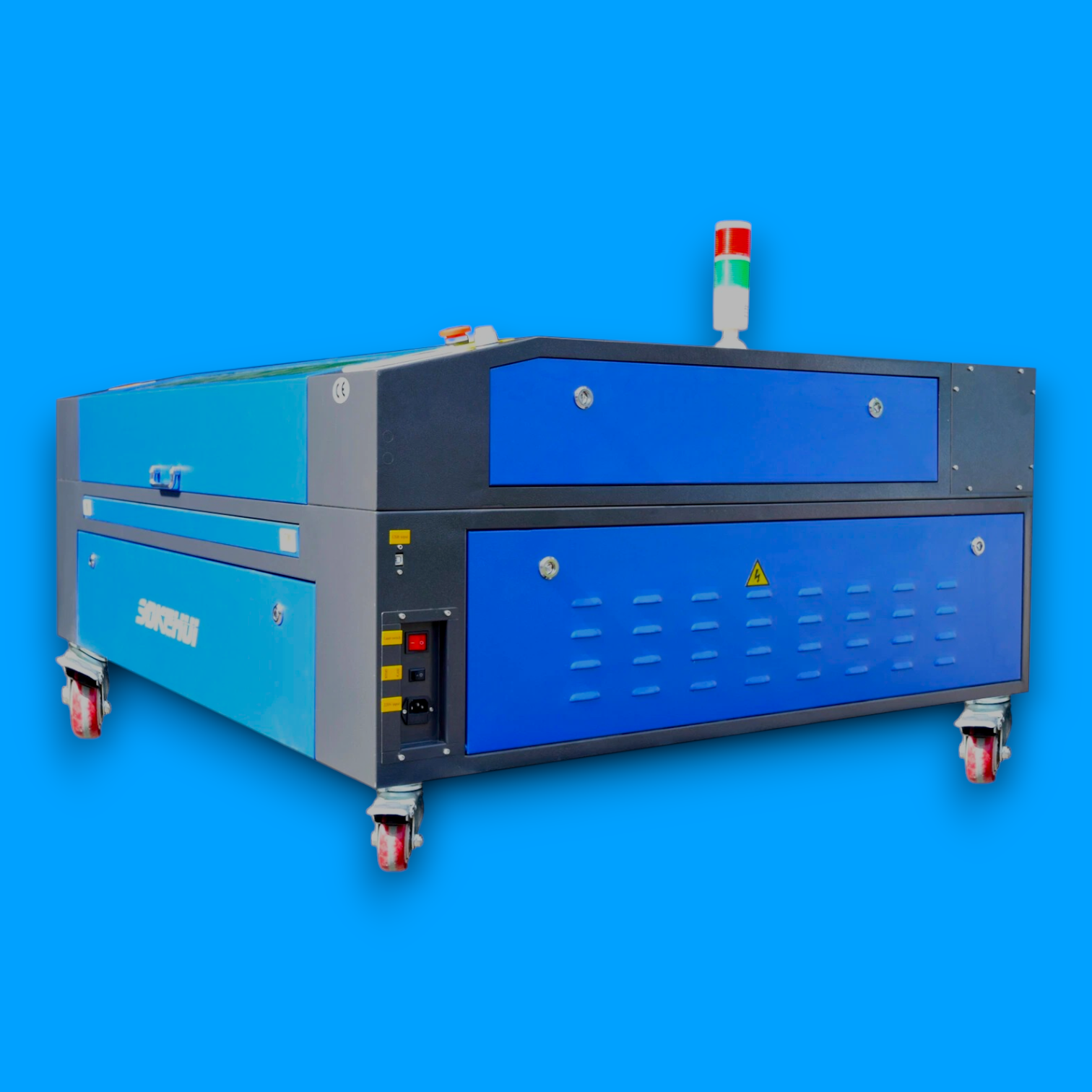

Red Dot Guidance + Laser Warning Lights Red dot pointer shows exact location and path. Red light = working; green light = ready.

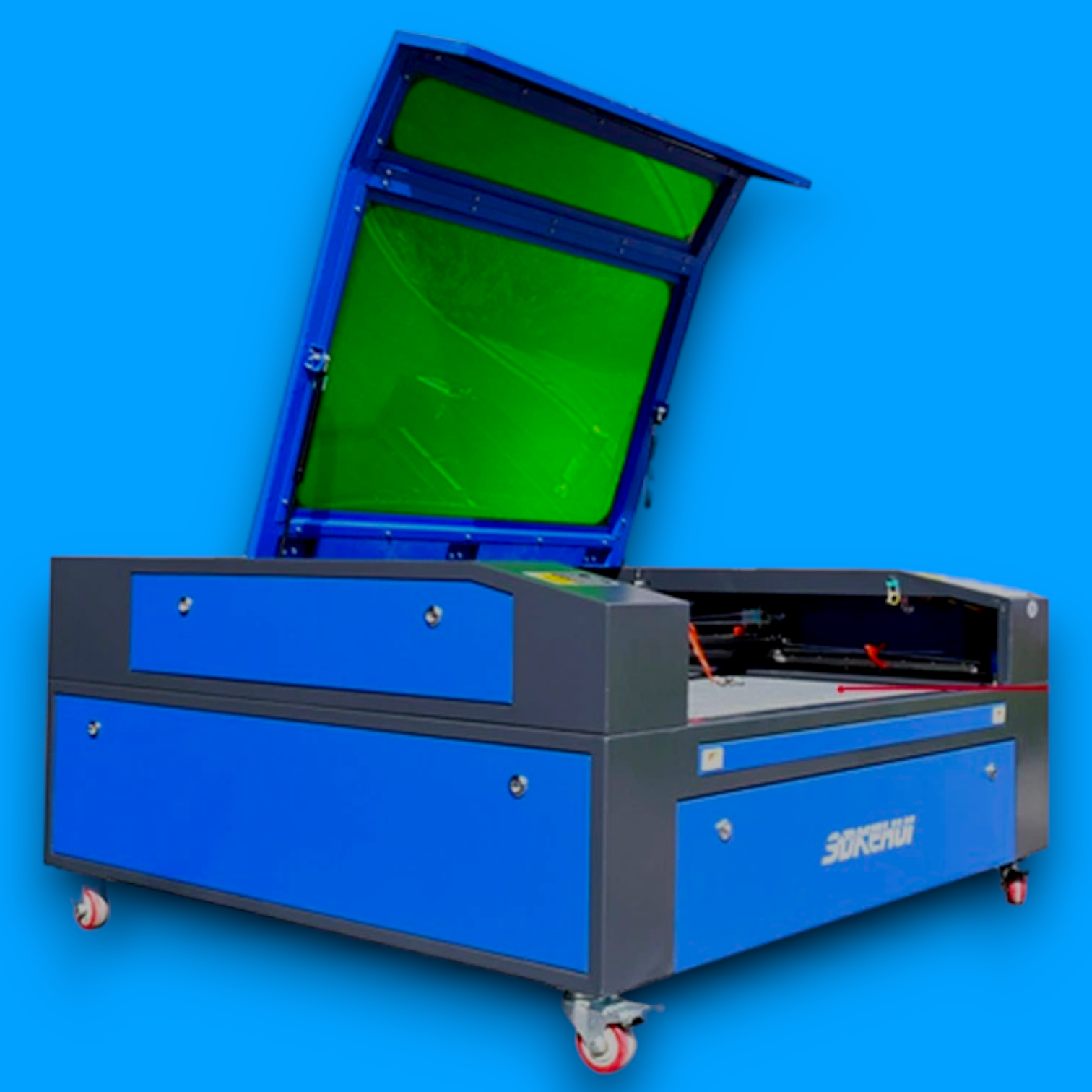

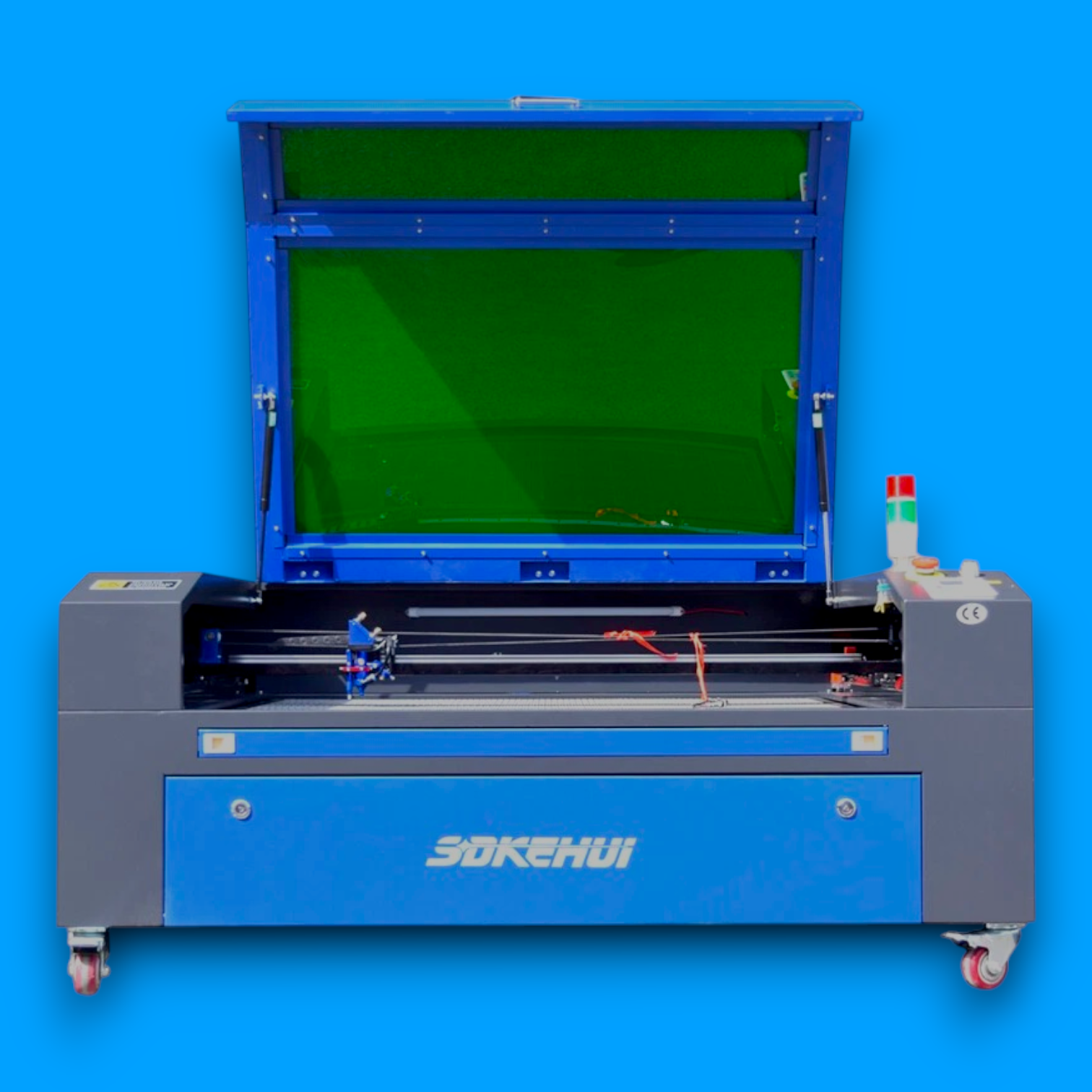

Large Transparent Viewing Window Fully transparent acrylic observation window with flame-retardant material for clear visibility and safety.

Front & Rear Pass-Through Doors + Electric Lift Process longer materials and adjust the workbed electrically (200 mm travel) with auto focus compensation.

Robust & Interference-Free Design Reinforced housing. Power supply and motherboard installed separately to avoid magnetic interference. LCD display on power supply for real-time current and error monitoring.

Comprehensive Safety Systems Automatic laser shutoff when cover is opened • Water-cut protection • E-Stop button • Flame-retardant window.

Technical Specifications

Engraving Area: 1000 × 800 mm (40" × 32")

Workbench Adjustment: Electric platform, 200 mm travel

Double Engraving Platforms: Honeycomb + aluminum knife cutting platform

Idle Speed: 0–1000 mm/s

Engraving Speed: 0–800 mm/s

Cutting Speed: 0–500 mm/s

Engraving / Cutting Depth: 0–10 mm

Auxiliary Positioning: Red light positioning

Drive Type: Digital two-phase stepper driver

Operating Temperature: 5–50°C

Working Humidity: 5%–95% (no water drop environment)

Software: AutoLaser (included)

Collaboration Software: CorelDRAW, AutoCAD, Illustrator, LightBurn

Software Running System: Windows (LightBurn also supports macOS & Linux)

Data Transmission: USB 2.0, U-Disk, WiFi

Power Supply: AC 110 V ± 10%

Product Size: 1460 × 1175 × 630 mm

Packing Size: 1580 × 1275 × 840 mm

Laser Details:

• Laser Brand / Type: Reci T2 (Carbon dioxide glass laser)
• Laser Power: 100 W
• Laser Tube Length: 1250 mm
• Laser Wavelength: 10.6 µm
• Laser Cooling Mode: External circulating water cooling

Software & File Support

• Recommended: LightBurn (best for robotics teams)
• Also fully compatible with AutoLaser (included), CorelDRAW, AutoCAD, Illustrator
• Supported formats: DXF, AI, SVG, BMP, JPG, JPEG, HPGL, DST, and more
• Color vector / raster assignment system

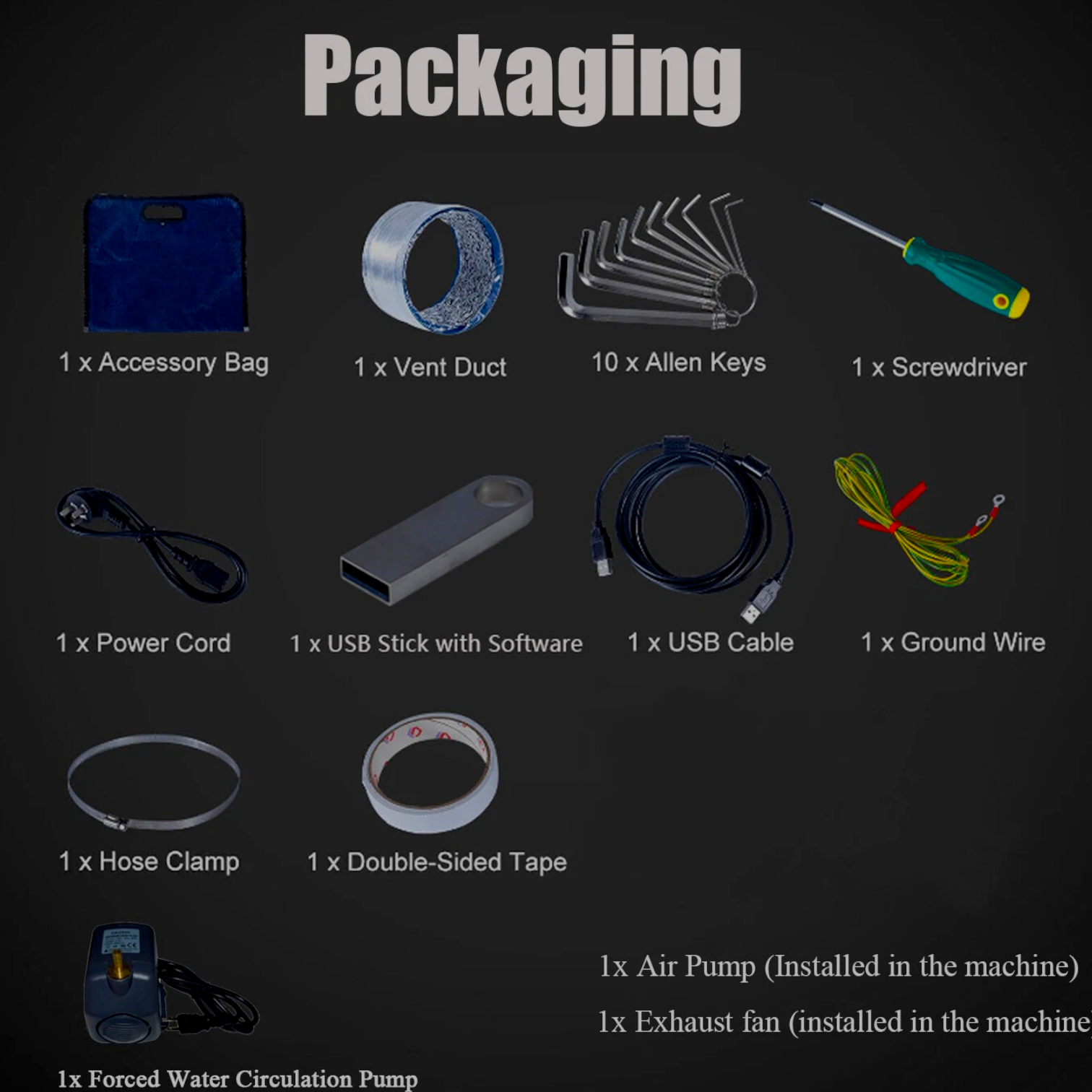

Package Included

• 100W CO₂ Laser Cutter with TL-A1 controller
• Reci T2 100W laser tube (installed)
• Built-in Air Assist system
• External circulating water cooling components
• U-Disk with software
• USB data cable + power cable
• Repair tools
• Smoke/exhaust components
• User manual

Materials It Cuts Beautifully

SWYFT Composite (SRPP) — including 1.75 mm, 3 mm, and 6 mm structural versions (excellent clean cuts with proper settings) Delrin (acetal), acrylic, polycarbonate, wood, cardboard, leather, fabric, rubber, plastic, and most other non-metallic materials. Not for metal.

Test cuts are recommended. We provide guidance for SWYFT Composite.

Frequently Asked Questions

Q: How thick can it cut? A: Up to ~10 mm depending on material and settings. SWYFT Composite cuts cleanly.

Q: Does it work with LightBurn? A: Yes — fully supported and highly recommended.

Q: What connectivity options are available? A: USB 2.0, U-Disk, WiFi, and Ethernet.

Q: What are the operating conditions? A: 5–50°C and 5%–95% humidity (no condensation).

Certifications

FDA Compliant • CE Certified • ISO9001 Quality Certified

Pair this laser with SWYFT Composite sheets for lightweight, high-strength, easy-to-fabricate robot parts that cut beautifully.

Ready to upgrade your team’s fabrication capability? This 100W large-format model offers excellent workspace, modern features, and strong value for FRC and FTC teams.
